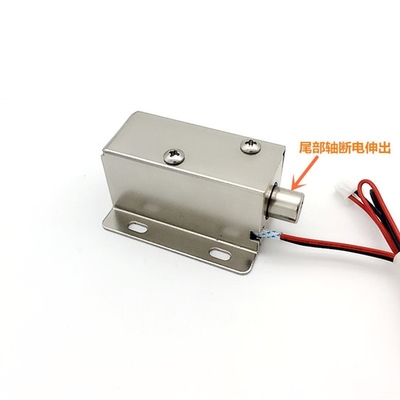

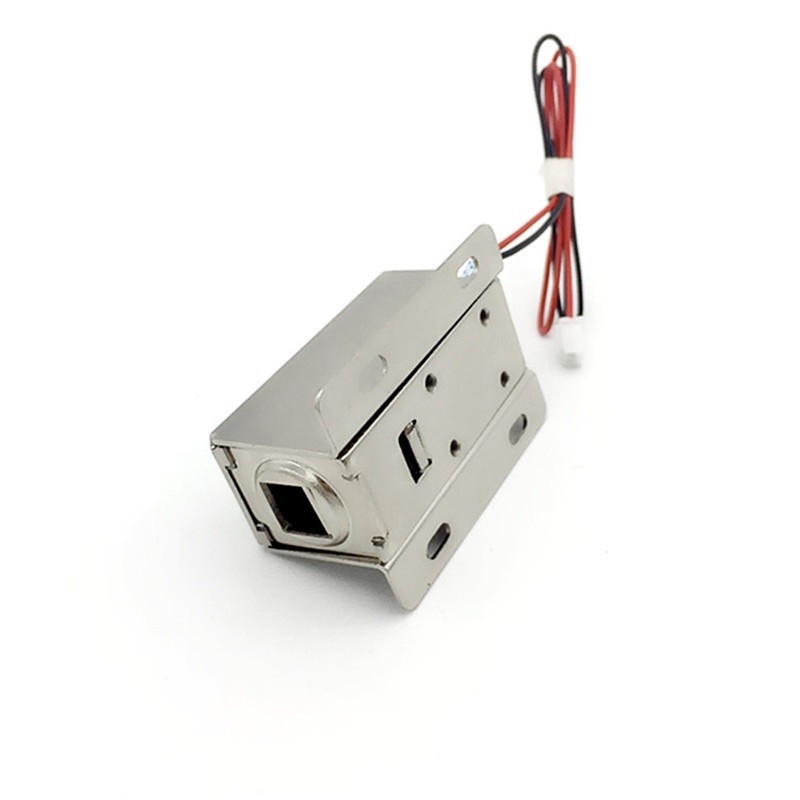

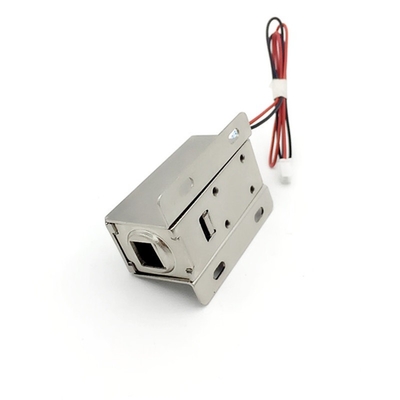

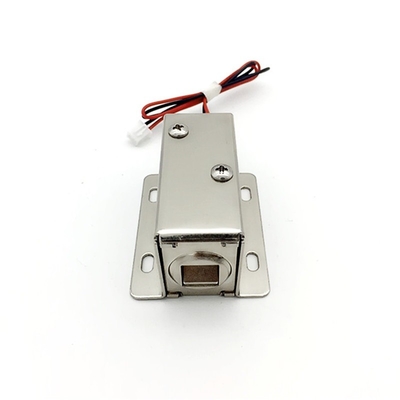

U1054S-001 5mm DC12V Solenoid Door Lock

I'm Online Chat Now

U1054S-001 5mm DC12V Solenoid Door Lock

U1054S-001 5mm DC12V Solenoid Door Lock
U1054S-001 5mm DC12V Solenoid Door Lock
U1054S-001 5mm DC12V Solenoid Door Lock U1054S-001 5mm DC12V Solenoid Door Lock U1054S-001 5mm DC12V Solenoid Door Lock U1054S-001 5mm DC12V Solenoid Door Lock U1054S-001 5mm DC12V Solenoid Door Lock

Large Image :  U1054S-001 5mm DC12V Solenoid Door Lock

Product Details:
Place of Origin: CHINA
Brand Name: DASON
Certification: ISO9001
Model Number: U1054S-001
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 2.4~4USD
Packaging Details: Carton packing
Delivery Time: 30day
Payment Terms: T/T
Supply Ability: 300000

U1054S-001 5mm DC12V Solenoid Door Lock

Description
High Voltage: 700V OEM: YSE
Current: 3A Application: Cabinet
Packing: Carton Samples: Availble
High Light:

DC12V Solenoid Door Lock

,

U1054S-001 DC12V Solenoid Door Lock

,

5mm mini electromagnetic lock

Solenoid manufacturer / intelligent electronic control lock / locker lockDSON-U1054
Product Description
Brand
DASON
Model
dsn-1054L-03
Voltage
DC12V
Current
3A
Stroke
5mm
Insulaiton level
Class B
Type
Pull push
Material
Stainless steel
Application
Lock
Customize
Yes

Instructions for use and installation:

1. The red and black wires are the power lines of electromagnetic lock, regardless of positive and negative poles. The input voltage is DC12V / 24V, and the current is 0.4A 0.52a respectively;

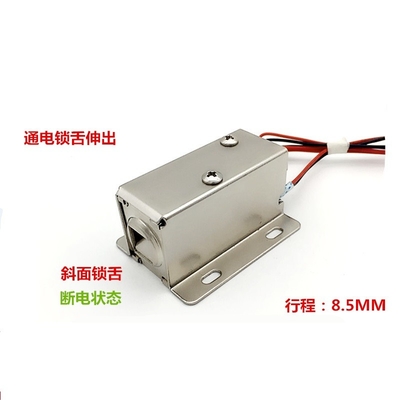

2. When the switch is connected to the power supply, the extension length of the lock tongue is 8.5mm. When the door is locked, the lock tongue retracts 8.5mm by the internal spring force, and the door lock is unlocked.

3. Installation dimension diagram:
U1054S-001 5mm DC12V Solenoid Door Lock 0
Packaging & Delivery
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 500 501 - 2000 2001 - 5000 >5000
Est. Time(days) 10 15 25 To be negotiated
