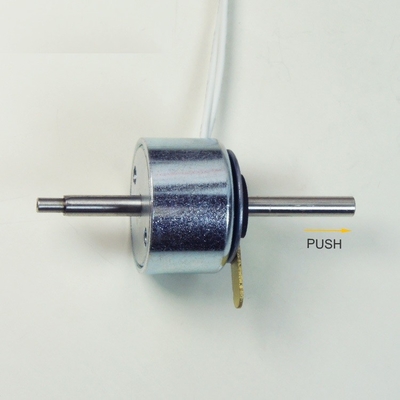

Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator

I'm Online Chat Now

Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator

Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator
Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator
Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator

Large Image :  Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator

Product Details:
Place of Origin: China
Brand Name: DASON
Certification: ISO9001
Model Number: T-1912S-12A09
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 6~9USD
Packaging Details: Carton packing
Delivery Time: 30day
Payment Terms: T/T,
Supply Ability: 300000

Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator

Description
Application: High-speed Chip Mounter Relative Humidity: 22%-85%
Port Size: 19 * 11.6mm Force: ≥200gf
Structure: Tubular Service Life: 500 Thousand Times
Working Cycle: 0.01 Seconds On, 0.02 Seconds Off Material: Enameled Wire + Cold Rolled Sheet

Customization of soft magnetic tripping solenoid for mechanical automatic equipment of opening and closing electromagnet



Product Parameter
Application High-Speed Chip Mounter
Model T-1912S-12A09
Type Tubular Push Pull Solenoid
Size φ19 * 11.6mm
Valtage DC12V
Power 16W
Current 1.33A
Resistance
Stroke 2mm
Force ≥200gf
Life ≥500,000 times
Working cycle 0.02S ON, 0.1S OFF
Response time ≤50ms
OEM / ODM Accept



characteristic:

1. The iron shell is made of solid material, anti fatigue and stable performance

2. The sealant is flush with the binding surface to reduce impact

3. The winding wires are arranged in order, and the resistance error between coils is between 0.5 ohm

4. Coil heating is controlled within 60 degrees to maintain balanced magnetic force

5. After special processing technology, the remanence is small.



instructions:

1. The absorbed substance is a metal containing iron;

2. The contact surface of the object to be absorbed, the electromagnet suction surface;

3. The smoother the suction surface, the better the suction;

4. The thicker the absorbed material, the better the suction;

5. The suction of the suction cup electromagnet is very low, and the suction decreases by 20% when the unit is 0.2mm;

6. The shorter the single power on time is, the longer the life of electromagnet is at the end of heating month;

7. During equipment maintenance and troubleshooting, the electromagnet power supply should be turned off to avoid burning off;

8. The methods to deal with the accumulation of residual magnetism are as follows: first, demagnetize the hand-held demagnetizer; second, reduce the remanence by changing the positive and negative poles.


Weight
Packaging Details
Shipment Details
N.W.(KG)
G.W.(KG)
Product Size(mm)
Carton Box Size(mm)
20GP
40GP
40HQ
0.3
0.4
27*30*53
350*310*180
/
/
/




Product dimension drawing

Tubular Circular Push Pull Pulse Type Solenoid Valve For High-speed Chip Mounter High Frequency Electromagnet Actuator 0




Materials
High quality iron house & core
High temperature resistance lead wire and copper wire
Efficient conductivity, outlet can be customized



OEM/ODM is welcome
11 years of designing and producing experience
CE, ROHS, ISO9001, UL certification
Good quality, best service, competitive price
Warmly welcome your visit to our factory



covers 8000 square meters, more than 300 employees, and 60% products are exported to worldwide, the main customers include Siemens, Sharp, Broadcasting, Midea, Gree and other well-known enterprises. Zanty is the worldwide leader in the design and manufacture of solenoids and solenoid valves, which has the research & development center, CNC machining center, metal stamping center, mold fixture processing center, injection molding center, coil winding center, surface electroplating center and assembly center.
