Product Details:
|
| Working Voltage: | DC12V / 24 V | Application: | Shared Power Bank |
|---|---|---|---|
| Structure: | Pull Push | Material: | Cold Rolled Sheet + Enameled Wire |
| Insulation Resistan: | 50MΩ MIN, DC500V | HS Code: | 8505909090 |
| Highlight: | 1.4A Normally Open Control Valve,DC500V Normally Open Control Valve,1.4A push pull electromagnet |
||

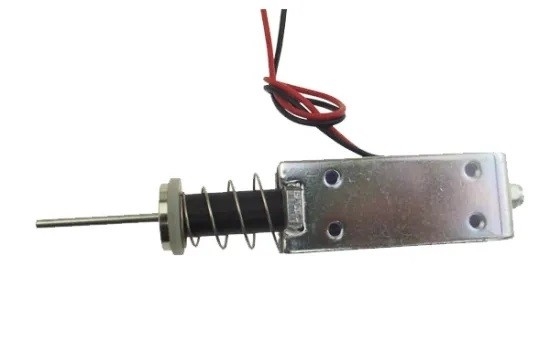

DC 24V Frame Push Type Solenoid
Product Name: DC 24V Frame Push Type solenoid
Product model: DSN-U0946B-24S24
Product voltage: DC12V / 24V, current: 0.7A 1.4A, power: 12w 24W
Product specification: length 51mm, width 41mm, height 37mm
Product features: the electromagnet is instantaneously energized, so it consumes less power. This lock has simple structure, low cost and convenient installation.
Service life: more than 500000 times under rated working conditions;
Instructions for use and installation:
1. The power line of electromagnet is not divided into positive and negative poles. The input voltage is DC12V / 24V, and the current is 0.7A and 1.4A respectively. The action is completed within 0.2 seconds after power on;
2. Installation dimension diagram:
Product Description
| Parameters | |
| P/N: | DSN-U0946B-24S24 |
| Stroke | 20mm |
| Rated Voltage: | DC24V |
| Crurrent | 1A |
| Resistance: | R=24Ω |
| Wattage: | 24W |
| Primary stress | 80G |
| Life cycle: | More than 200,000 cycles |
| Applied | game machine |
