Product Details:
|
| Place Of Origin: | Guangdong, China | Model Number: | DSN-1140N |
|---|---|---|---|
| Product Name: | Solenoid Of Textile Machine | Working Cycle: | Intermittent Cycle |
| Insulation Resistan: | DC500V, ≥500MΩ | Temperature Range: | -5℃~+45℃ |
| High Light: | DC500V Heavy Duty Solenoid,2.61A Heavy Duty Solenoid,2.61A high pressure air solenoid valve |
||

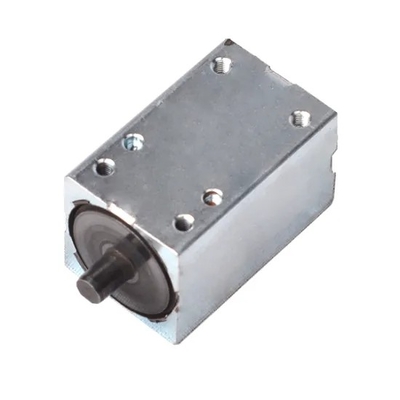

DC Power Spinning Machine Loom Solenoid Can Be Customized Frame Solenoid
Main parameters of the product:
1. Name and model (P / N): belt electromechanical magnet DSN-k1140-01
2. Standard test conditions:
2.1 temperature range: - 5 ℃ - 45 ℃
2.2 relative humidity: 20% - 85%
2.3 rated voltage: DC24 V
2.4 wattage: 8.0 Ω± 10% at 20 ℃
2.5 period cycle:
3. Appearance: no damage, crack, rust, surface stain
4. Electrical characteristics
4.1 working voltage: DC24 V ± 10%
4.2 potential: power on DC24 v. stroke 5mm, force 1.8kg min
4.3 insulation resistance: 100M Ω MIN,@500V DC.
4.4 high voltage: 1sec @ dc700v
5.0 life: 1000000 times min
| Parameters | |
| P/N: | DSN-1140N |
| TEST | |
| Enviroment Temperature Range: | -5ºC-45ºC |
| Relative Humidity: |
20%-85%
|
| Rated Voltage: | DC24V |
| Rated current | 2.61A-2.37A |
| Life cycle | 1,000,000 |
| Quantity(Pieces) | 1 - 1000 | >1000 |
| Est. Time(days) | 15 | To be negotiated |
