Product Details:
|
| Structure: | Needle | Withstand Voltage: | 2000V/1min |
|---|---|---|---|
| Resistance: | 144Ω±10% | Relative Humidity: | 20%-85% |
| Temperature Range: | -5℃-45℃ | Work Model: | 800gf |
| High Light: | 2mm Push Pull Solenoid,26V Push Pull Solenoid,26V DC Power Solenoid |
||

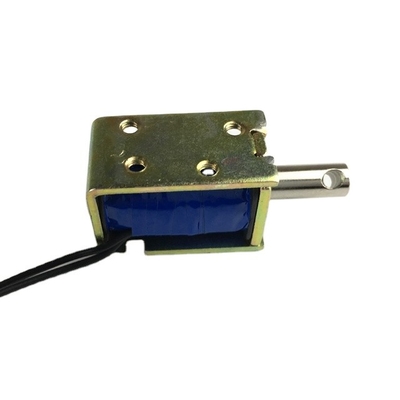

12V~26V DC Power Solenoid 2mm Push Pull Solenoid
Product Description
Electromagnet is a device that generates electromagnetism by electrifying. A conductive winding matching its power is wound around the iron core. The coil with current is as magnetic as a magnet. It is also called electromagnet.
Specification
| No | Project | technical parameter | |
| 1 | Mode of action of exercise | Push pull type | |
| 2 | Power on rate | 25% | |
| 3 | Rated parameters | Voltage | 12VDC |
| 4 | electric current | 1A | |
| 5 | resistance | 36 | |
| 6 | power | 12W | |
| 7 | Applicable range of voltage change | 12V~26V(The low value is the starting voltage ) |
|
| 8 | Initial force | 100G | |
| 9 | Design itinerary | 2mm | |
| 10 | Maximum single power on time | 0.1S | |
Performance advantages:
1. Whether the electromagnet magnetism can be controlled by on-off current;
2. The magnitude of magnetism can be controlled by the strength of the current or the number of turns of the coil;
3. The magnetic size can be controlled by changing the resistance to control the current;
4. The pole of electromagnet can be controlled by changing the direction of current
Dimensional drawing
Material description:
1. Armature: TISCO dt4c electrical pure iron
2. The Curie temperature curve is demagnetized without remanence
3. Copper base H62 copper, surface passivation treatment anti-oxidation
4. Brilliant material: Teflon tape, good insulation performance, in line with environmental requirements
5. The bayonet is made of imported stainless steel.
6. The armature was plated by electroless nickel plating, and the salt spray test lasted for 72 hours
7. The enameled wire adopts high-quality enameled wire imported from Germany, the temperature resistance grade is above 210 degrees, and the withstand voltage is more than 2000 v
| Quantity(Pieces) | 1 - 500 | 501 - 1000 | 1001 - 5000 | >5000 |
| Est. Time(days) | 10 | 15 | 20 | To be negotiated |
