Product Details:
|
| Structure: | Needle | Withstand Voltage: | 2000V/1min |
|---|---|---|---|
| Resistance: | 144Ω±10% | Relative Humidity: | 20%-85% |
| Temperature Range: | -5℃-45℃ | Work Model: | 150gf |
| Port Size: | M3 | Reset Time(s):: | 2s |
| High Light: | Open Frame Pull Push Solenoid,24V Pull Push Solenoid,12V DC Open Frame Solenoid |
||

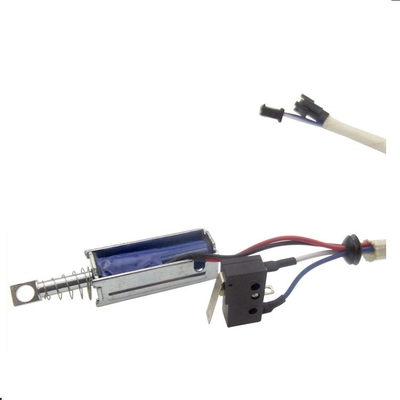

Stroke 10Mm 5Kgs Force Vending Machine Storage Cabinet Lock 12v 24v Dc Open Frame Pull Push Solenoid
Product Description
Brand | DASON | Model Number | 0837TL |
Rated Voltage (V) | DC6/12/24 | Rated Power(W) | 3.5-35 |
Work Model | Pull Push Type | Holding Force (N) | 0.2-100 |
Stroke(mm) | 11 | Reset Time(s) | 0.2 |
Service Life | 500 Thousand Times | Certification | CE,ROHS,ISO9001,UL |
Material | Iron | Lead Wire Length(mm) | 200 |
Install Style | screw | Tolerance of Dimension | gb/t1804-m |
Water-proof | IP65 | Insulation Class | B |
Hi-Pot Test | AC 600V 50/60Hz 2s | Non-excitation Holding Force | 0 |
Residual Magnefism | / | Duty Cycle | 1-100% |
Working Temperature | -10°C-100°C | Thread Size(mm) | M3 |
Thread Depth(mm) | / | Payment Term | TT,PAYPAL |
Sample Order | Yes | Warranty | 1 Year |
MOQ | 10 pcs | Supply Ability | 5000 pcs per Week |
Delivery Time | 3 Days | Port of Loading | shenzhen |
Performance advantages:
1. The solenoid core is wear-resistant, good impact resistance, and the top is not damaged after long-term use
2. The iron core can move flexibly and react quickly
3. The bobbin is made of DuPont material with high temperature and wear resistance
4. When the temperature rises from 50 ℃ to 220 ℃, the suction is still stable and safe
5. The spring force is still stable when the temperature rises from 50 ℃ to 220 ℃.
Longer service life without oil immersed iron core
7. Accurate positioning of iron core operation
8. During high frequency operation, the iron core moves stably without shaking
9. High voltage resistance can reach 1500V ~ 1800V / 2mA
10. The electromagnet coil is made of German enameled wire.
11. The coil has good conductivity, low power consumption, low calorific value, temperature resistance of 180 ℃ and the highest temperature of 210 ℃.
12. All materials used for making electromagnet are treated with environmental protection, which is safe and reliable.
13. The iron core is made by special technology. Wear resistance, good impact, long-term use of the top without wear.
14. The retaining electromagnet adopts high-quality magnet, with stable magnet suction, safe and reliable
15. The support will not fall off after more than 500000 times of normal operation
16. It operates normally at 250 ℃.
Dimensional drawing
Material description:
1. Armature: TISCO dt4c electrical pure iron
2. The Curie temperature curve is demagnetized without remanence
3. Copper base H62 copper, surface passivation treatment anti-oxidation
4. Brilliant material: Teflon tape, good insulation performance, in line with environmental requirements
5. The bayonet is made of imported stainless steel.
6. The armature was plated by electroless nickel plating, and the salt spray test lasted for 72 hours
7. The enameled wire adopts high-quality enameled wire imported from Germany, the temperature resistance grade is above 210 degrees, and the withstand voltage is more than 2000 v
Structure
Simple structure design, durable and reliable
Buckle and rubber sleeve parts reduce abrasion, extend service life
| Quantity(Pieces) | 1 - 500 | 501 - 1000 | 1001 - 5000 | >8000 |
| Est. Time(days) | 10 | 15 | 20 | To be negotiated |
