Product Details:
|
| Model NO: | QF0937-12A30 | Valve Structure: | Pilot Membrane Structure |
|---|---|---|---|
| Usage: | Safety, Emptying, Drain | Standard: | DIN |
| Power Supply: | DC Solenoid Valve | Pressure: | Low Pressure |
| High Light: | 0.4A 2 Way Pneumatic Solenoid Valve,DC12V 0 2 Way Pneumatic Solenoid Valve,DC12V two way solenoid |
||

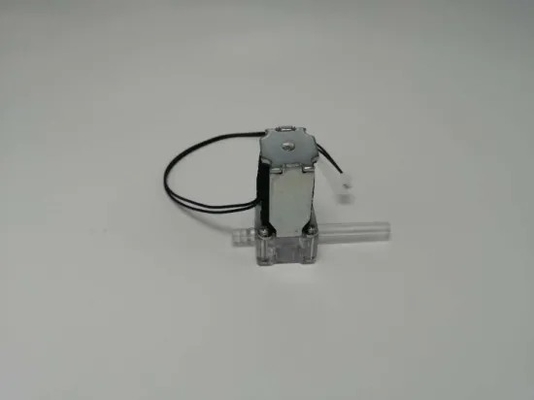

Sterilizer Solenoid Valve Qf0937-12A30
1,Rated parameter
| VoltageVoltage | DC12V |
| Electric current | 0.4A |
| power | 4.8W |
| DC resistance | 30Ω±5% |
| Duty cycle | 50% |
| Insulation grade | F 155° |
| medium | Weak acid, weak base or gas |
2. Test conditions
Temperature:20ºC±2
Humidity:65HR±5%
Atmospheric pressure:1013mbar
Power Supply:Stable DC power supply
3.Product dimension drawing:
4.Electrical characteristics
Minimum operating voltage:Dc9.5v can be normally opened or closed
Action pressure:0.2Mpa
Current capacity:Practical testing±15%
Air tightness of air inlet:Power on and exhaust, no air leakage at 0.2MPa after power off
