Micro 500N 150W Iron Core Solenoid

I'm Online Chat Now

Micro 500N 150W Iron Core Solenoid

Micro 500N 150W Iron Core Solenoid
Micro 500N 150W Iron Core Solenoid Micro 500N 150W Iron Core Solenoid Micro 500N 150W Iron Core Solenoid Micro 500N 150W Iron Core Solenoid

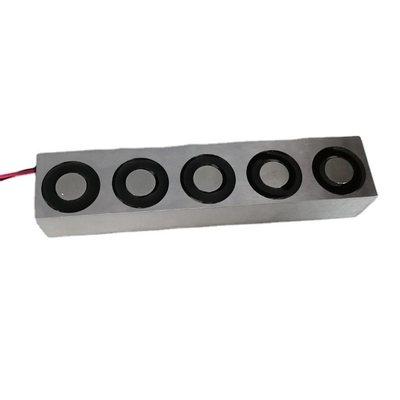

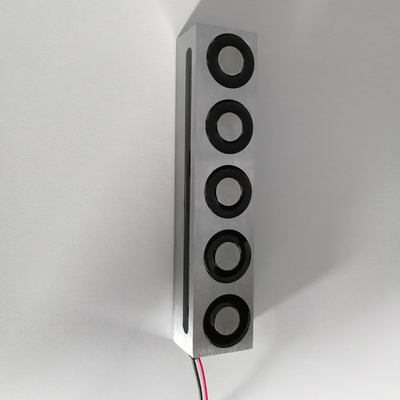

Large Image :  Micro 500N 150W Iron Core Solenoid

Product Details:
Place of Origin: China
Brand Name: DASON
Certification: ISO9001
Model Number: H5231
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 6~8USD
Packaging Details: Carton packing
Delivery Time: 30day
Payment Terms: T/T
Supply Ability: 300000

Micro 500N 150W Iron Core Solenoid

Description
Working Voltage: 12V/24V Purpose: Lifting
Height: 45 Mm Stroke(mm): 0
Holding Force: 500N Application: Door Lock
High Light:

150W Iron Core Solenoid

,

500N Iron Core Solenoid

,

150W miniature latching solenoid

Micro 12v 24v Dc Security Magnetic Lock Mini 20Kg 50Kg Latching Electromagnet Door Lock Solenoid​


Product Description

Brand
Dason
Model
XH1803829
Place of Origin Guangdong, China Certification
CE,ROHS,ISO9001
Dimension(L*W*H)
180*38*29 mm
Rated Voltage (V)
DC 12/24
Rated Power(W)
1-150
Work Model Holding Type
Holding Force (N)
500
Stroke(mm)
0
Reset Time(s)
0.2
Service Life 500 Thousand Times
Material
Iron
Lead Wire Length(mm)
300
Install Style
screw
Tolerance of Dimension
gb/t1804-m
Water-proof
IP65
Insulation Class
B
Residual Magnefism
/
Duty Cycle
50%-100%
Working Temperature
-10°C-100°C
Thread Size(mm)
M5
Thread Depth(mm)
/
Payment Term
TT,PAYPAL
Sample Order Yes Warranty 1 year
MOQ 2 pcs Supply Ability 5000 pcs per Week
Delivery Time 3 Days Port of Loading shenzhen


Weight
Packaging Details Shipment Details
N.W.(KG)
G.W.(KG) Product Size(mm) Carton Box Size(mm) 20GP 40GP 40HQ
1.3 1.5 180*38*29 350*310*180 / / /


Product Features

Small size, high suction,with force power off and without force power on
Smooth and flat surface, saving energy, safe and reliable



Product Features
Small in size
Big in force
With force power on and without force power off
Easy to operate
Epoxy filled
IP65
Wide range of application
10 years of designning and producing experience
OEM/ODM is welcomed

Lead Time :

Quantity(Pieces) 1 - 50 51 - 500 >500
Est. Time(days) 7 15 To be negotiated
