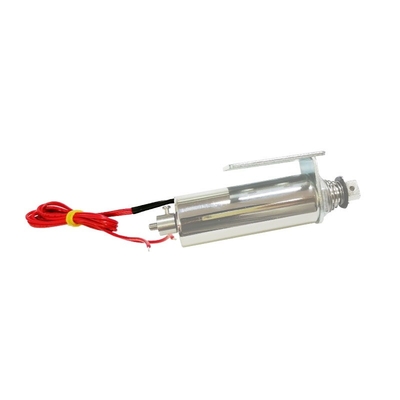

Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid

I'm Online Chat Now

Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid

Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid
Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid
Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid

Large Image :  Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid

Product Details:
Place of Origin: China
Brand Name: DASON
Certification: ISO9001
Model Number: T3080A
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 6~8.USD
Packaging Details: Carton packing
Delivery Time: 30day
Payment Terms: T/T
Supply Ability: 300000

Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid

Description
Work Model: Pull Push Type Voltage: 0~24V
Size: 30*80mm Application: Auto Parts
Purpose: Light Switch Hi-Pot Tes: AC 600V 50/60Hz 2s
High Light:

12.2w 24V Push Pull Solenoid

,

47 Ω 24V Push Pull Solenoid

,

12.2w automotive solenoid

DC24 V Long Stroke Through Push Pull Solenoid Electrical Automation Traction Round Pipe Push Pull Automotive Solenoid



Product Description

The Solenoid is a non-standard customized product, and the specific parameters can be designed according to the requirements,

Some parameters of 3080 are as follows:

Working voltage: DC24 V

Working current: 511ma

Power: 12.2w

Resistance: 47 Ω

Working cycle: on for 1 second, off for 1 second (up to 140 seconds)

Insulation class: F (155 degrees)

Suction: 8.5mm ≥ 600g

Insulation resistance: Ac500V 100m Ω between coil and frame

Withstand voltage: Ac500V (50 / 60Hz) between coil and frame

Temperature rise: ≤ 65 ℃

Service life: ≥ 500000 times

Strength of lead wire and coil: ≥ 1kg


Product dimension drawing

Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid 0

Force versus stroke curve



Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid 1

Round Pipe 47 Ω 12.2w 24V Push Pull Solenoid 2

Materials
High quality pure iron house, residual magnetism
High standard copper wire, heating stability, good insulation, efficient conductivity
IP65 waterproof class



Structure
Simple structure design, durable and reliable
Buckle and rubber sleeve parts reduce abrasion, extend service life
Installation and operation
Threaded mounting, easy to install and fix
U-shaped plunger for easy load connection


OEM/ODM is welcome
11 years of designing and producing experience
CE, ROHS, ISO9001, UL certification
Good quality, best service, competitive price
Warmly welcome your visit to our factory


Packaging & Delivery
Packaging Details
Product Size: 27*30*53 (mm)
Carton Box Size: 350*310*180 (mm)
N.W.: 0.3 (KG)
G.W.: 0.4 (KG)
Port:FOB shenzhen

Lead Time :

Quantity(Pieces) 1 - 50 51 - 500 501 - 1000 >1000
Est. Time(days) 5 10 20 To be negotiated
