Product Details:
|
| Application: | Textile Machine | Current Characteristics: | DC |
|---|---|---|---|
| Purpose: | Automatic Electrical Appliances | Specification And Size: | 12*24（mm） |
| Initial Suction: | 100（g） | Material: | Cold Rolled Plate. Enameled Wire |
| Power: | 55W | High Voltage: | 1 Second / Leakage Current 4mA / AC600V |
| High Light: | Tubular Push Pull Solenoid,Automatic Ticket Machine Push Pull Solenoid,Push Pull Solenoid 24V |
||
| Product Parameters | |
| Application | Automatic Ticket Machine |
| Model | T-1224S-24A10.5 |
| Type | Tubular Push Pull Solenoid |
| Size | φ12 * 24mm |
| Valtage | DC24V |
| Power | 55W |
| Current | 2.29A |
| Resistance | 10.5Ω |
| Stroke | 3mm |
| Force | ≥100gf |
| Life | ≥1000,000 Times |
| Working cycle | 10ms ON, 90ms OFF |
| Response time | ≤50ms |
| OEM / ODM | Accept |

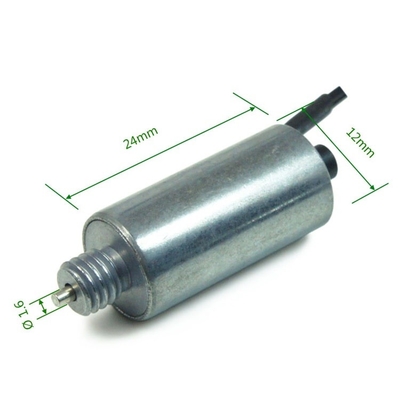

Dimension drawing of electromagnet
Lead Time :
| Quantity(Pieces) | 1 - 500 | 501 - 1000 | 1001 - 5000 | >5000 |
| Est. Time(days) | 10 | 15 | 20 | To be negotiated |
Our 6 developers release 5 new products each month
MOQ of 500 pieces | 15- to 20-day delivery time | Nonstandard parts customized.
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you provide free samples ?
A2: No, We don't provide free samples.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA
and QC system.
Q4: How’s the package?
A4: Normally are cartons, but also we can pack it according
to your requirements.
Q5: How’s the delivery time?
A5: It depends on the quantity you need, 25-30 days usually.
