Product Details:
|
| Relative Humidity: | 22%-85% | Port Size: | 12 * 14mm |
|---|---|---|---|
| Power: | 6.3W | Structure: | Tubular |
| Service Life: | 500 Thousand Times | Working Cycle: | 0.01 Seconds On, 0.02 Seconds Off |
| Marketing Type: | New Product 2021 | Certificate: | CE,ROHS,ISO9001 |
Customization of soft magnetic tripping solenoid for mechanical automatic equipment of opening and closing electromagnet
| Product Parameter | |
| Application | Intelligent Door Lock / Cabinet Lock |
| Model | T-1214S-05A40 |

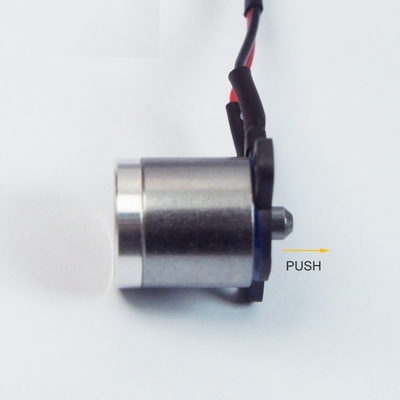

| Type | Tubular Push Pull Solenoid |
| Size | φ12 * 14mm |
| Valtage | DC5V |
| Power | 0.63W |
| Current | 0.13A |
| Resistance | 40Ω |
| Stroke | 2mm |
| Force | It can move when power on |
| Life | ≥100,000 Times |
| Working cycle | 1S ON, 1S OFF |
| Response time | ≤50ms |
| OEM / ODM | Accept |
characteristic:
1. The iron shell is made of solid material, anti fatigue and stable performance
2. The sealant is flush with the binding surface to reduce impact
3. The winding wires are arranged in order, and the resistance error between coils is between 0.5 ohm
4. Coil heating is controlled within 60 degrees to maintain balanced magnetic force
5. After special processing technology, the remanence is small.
instructions:
1. The absorbed substance is a metal containing iron;
2. The contact surface of the object to be absorbed, the electromagnet suction surface;
3. The smoother the suction surface, the better the suction;
4. The thicker the absorbed material, the better the suction;
5. The suction of the suction cup electromagnet is very low, and the suction decreases by 20% when the unit is 0.2mm;
6. The shorter the single power on time is, the longer the life of electromagnet is at the end of heating month;
7. During equipment maintenance and troubleshooting, the electromagnet power supply should be turned off to avoid burning off;
8. The methods to deal with the accumulation of residual magnetism are as follows: first, demagnetize the hand-held demagnetizer; second, reduce the remanence by changing the positive and negative poles.
|
Weight
|
Packaging Details
|
Shipment Details
|
||||
|
N.W.(KG)
|
G.W.(KG)
|
Product Size(mm)
|
Carton Box Size(mm)
|
20GP
|
40GP
|
40HQ
|
|
0.3
|
0.4
|
27*30*53
|
350*310*180
|
/
|
/
|
/
|
Product dimension drawing
Materials
High quality iron house & core
High temperature resistance lead wire and copper wire
Efficient conductivity, outlet can be customized
OEM/ODM is welcome
Dason(HK) Technolgy Co.,Ltd.,Was founded in 2012, we have perfect management system, excellent design research and development personnel, our main production and r&d of push-pull electromagnet, rotating magnet and sucker electromagnet, the products are widely used in the subway, auto parts, household appliances and machinery industry.We are more competitive than our peers:
The development and supporting services of non-standard parts for the short period of the sample period;
The price is reasonable, the quality problem, our product life exceeds the industry standard.
Our management is more complete and the delivery cycle is short.
I hope our products and services will bring us together
