Product Details:
|
| Type: | Solenoid | Port Size: | Customizable |
|---|---|---|---|
| Structure: | Pull Push | Material: | Enameled Wire |
| Insulation Resistan: | 50MΩ MIN, DC500V | Biometry: | 5000000 |
| High Light: | DC 3V Micro Solenoid,DC 5V Micro Solenoid,DC 6V Mini Solenoid |
||

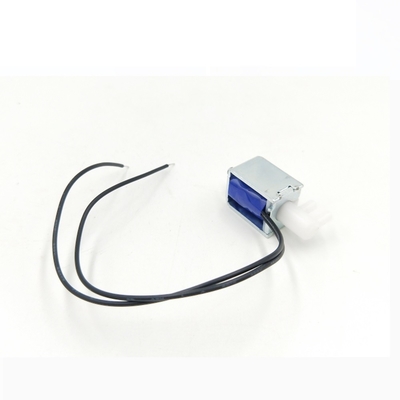

Small DC 6V 5V 3V Mini Control Micro Solenoid Exhaust Release Valves For Medical Product Air Valve
Product Description
It has low vibration and low power consumption.Reliable, compact, and simple to install.
Can be used for gas valve and pump.Widely used in automatic control equipment.
It will become hot when it works because there are so many coils inside. It’s normal phenomenon.
Specification
|
ommon pressure
|
300mmHg ( Max 350mmHg)
|
|
Voltage
|
DC 12V
|
|
Resistance
|
120Ω±10%at20℃
|
|
Ampere
|
0.1A
|
|
Watts
|
1.2W
|
|
Dielectric strength
|
600VAC/1 Sec
|
|
Insulated resistance
|
500VDC/100MΩ
|
|
Duty Cycle
|
100%
|
|
Insulation Class
|
B Class (130℃)
|
Application : Household appliances, medical, beauty, massage, adult products, sphygmomanometer, beauty instrument, Essential oil machine, booster technology
|
DC3V
|
DC3.7V
|
DC6V
|
DC12V
|
DC24V
|
|
|
Ampere
|
120±10%mA
|
105±10%mA
|
100±10%mA
|
100±10%mA
|
120±10%mA
|
|
DC Resistance
|
25±10%Ω
|
35±10%Ω
|
60±10%Ω
|
120±10%Ω
|
200±10%Ω
|
|
Power
|
0.36W
|
0.39W
|
0.6W
|
1.2W
|
2.88W
|
|
Life test
|
≥200,000 Times ( Power-on 5s , Power-off 5s )
|
|||
|
Air Tightness
|
＜3mmHg/min (under 300 mmHg in a 100cc tank )
|
|||
|
Temperature
|
0-50℃ 30% to 85%RH
|
|||
|
Valve Types
|
Normally Opened Normally Close Weight :15 gram
|
|||
Packing & Delivery
40PCS/ PP box
600PCS / CTN
G.W.: 13 KG
N.W.: 12.6KG
