2mm Stroke Permanent Magnetic DC Solenoid Actuator

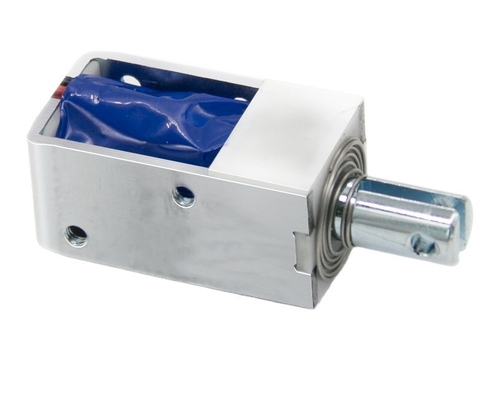

Large Image : 2mm Stroke Permanent Magnetic DC Solenoid Actuator

Product Details:

Place of Origin:	China
Brand Name:	DASON
Certification:	ISO9001
Model Number:	DSN-0730-01

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	5~8USD
Packaging Details:	Carton packing
Delivery Time:	30day
Payment Terms:	T/T
Supply Ability:	300000

Contact Now

2mm Stroke Permanent Magnetic DC Solenoid Actuator

Description

Working Voltage:	DC 24V	Size:	07x30mm
Initial Suction:	4N	Power:	20W
Stroke:	2mm	OEM:	Support
Current:	1.45	Powe:	Solenoid
Highlight:	Permanent Magnetic DC Solenoid Actuator , 2mm Stroke DC Solenoid Actuator , 2mm Stroke Magnetic Solenoid Actuator

Strong Force Locking Solenoid Actuator With Permanent Magnet DC Solneoid Factory

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: DSN

Certification:: ISO9001

Working voltage:: DC6V ±10%

Current:: 0.8A (REF)

Resistance:: At20℃ 7.5Ω±10%

Power:: 4.8W

Potence:: ≥500gf.

Insulation resistance:: 50MΩ MIN, DC500V

High voltage:: 1 second / leakage current 3mA / AC600V

Insulaiton level:: Class B

Biometry:: Test 100,000 times

Keyword:: Small electromagnet solenoid lock

Supply Ability

Supply Ability: 100000 Piece/Pieces per Month

Packaging & Delivery

Port: Guangdong, shenzhen

Lead Time:

Quantity(Pieces)	1 - 500	501 - 1000	1001 - 5000	>5000
Est. Time(days)	15	15	20	To be negotiated

Model	DSN-0730K-01
Brand	Dason
Place of Origin	China
Temperature range	-5℃-45℃
Relative humidity	20%-85%
Rated voltage	DC6V
Sphere of application	Intermittent power (50%)
Facies	No damage, cracks, rust, surface stains
Surface size	See Attachment
Potence	DC0V, when the stroke is 0mm, the holding force is ≥500gf.
Biometry	DC6V power on 0.5 seconds, power off 0.5 seconds for a cycle (test life 100,000 times

2mm Stroke Permanent Magnetic DC Solenoid Actuator 0

2mm Stroke Permanent Magnetic DC Solenoid Actuator 1

2mm Stroke Permanent Magnetic DC Solenoid Actuator 2

2mm Stroke Permanent Magnetic DC Solenoid Actuator 3

2mm Stroke Permanent Magnetic DC Solenoid Actuator 4
