Product Details:
|
| Current Characteristics: | DC | Shape: | Cylindrical |
|---|---|---|---|
| Application: | Industrial | Working Cycle: | 0.5 Seconds On, 5 Second Off |
| Initial Suction: | 100g | Working Voltage: | 3-220VAC,3-220VDC V |
| Type: | Electromagnetic | Function: | Convert Electrical Energy Into Linear Motion |
| Current: | Varies Depending On Application | Relative Humidity: | 10%~90%RH |
| Force: | Varies Depending On Application | Stroke: | 5mm |
| Resistance: | 12Ω | Specification And Size: | 07*30（mm） |
| Holding Force: | ≥1000gf | Material: | Stainless Steel |
| Duty Cycle: | 50% | Usage: | Suck Battery Equipment |
| Electrical Life: | 300000 | Warranty: | Custom |
| Size: | Customizable | Service Life: | 500 Thousand Times |
| Mechanical Life: | 1000000 | Install Style: | Screw |
| Coil Resistance: | 10Ω |
| Specifications | |||

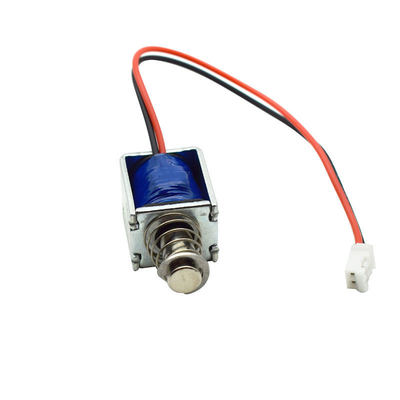

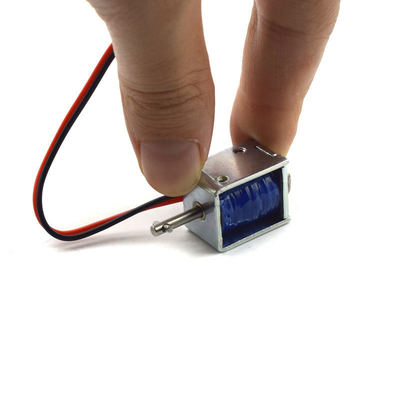

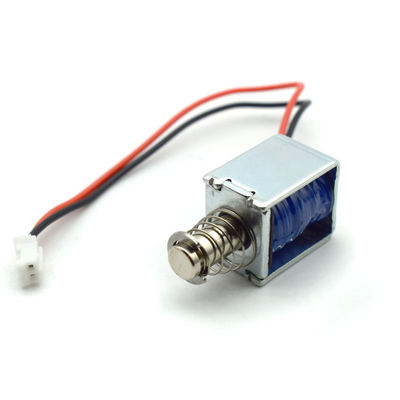

| Brand | Dason | Product Name | open frame push pull solenoid |
| Model | U0620 | Rated Voltage | DC 12v 24v |
| Power | 1.6-16w | Force | 0-1.5N |
| Stroke | 0-5mm | Duty Cycle | 10-100% |
| Cable Length | 200mm | Material | Metal, Electronic Parts |
| Action Form | Push pull type | Weight(N.W.) | 0.018kg |
| Install Style | Screw | Thread Size & Deepth(mm) | 2-M2.5 |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | 20*16*13(mm) | Carton Box Size(Standard) | 350*310*180(mm), accepted custom |
