Product Details:
|
| Operation Mode: | Push And Pull | Biometry: | 5000000 |
|---|---|---|---|
| Product Usage: | Tow | Voltage: | 12V |
| Insulation Resistan: | 700 | Initial Suction Force: | 0.2N |
| Life Expectancy: | 1 Million Cycles | Material: | Steel |
| Color: | Silver | Application: | Control The Change |
| Environmental Prot: | Ction: ROHS | Relative Humidity: | 2%~85%RH |
| Curren: | 0.85A | Protection Class: | IP65 |
| Size: | 21*11*12（mm) |
| Specification | |||
| Brand | Landa | Product Name | T3257L Tubular Push Pull Solenoid |
| Model | Tu3257L | Voltage | DC 12V24V |
| Power | 100W | Force | 10N |
| Waterproof Class | IP65 | Duty Cycle | 10-100% |
| Stroke | 15mm | Material | Metal&Electronic Parts |
| Action Form | Push pull | Thread Size | / |
| Install style | Screw | Deepth(mm) | / |
| Hi-Pot Test | AC 600V 50/60 Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | L57*D32(mm) | Packing Box Size(cm) | 35*31*18(cm), accept custom |

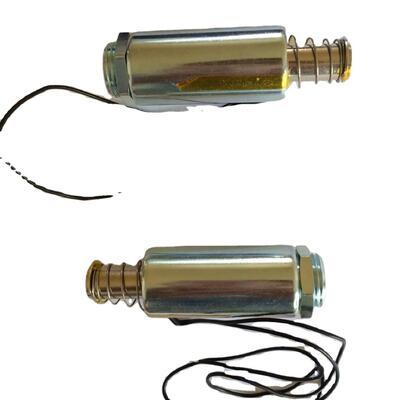

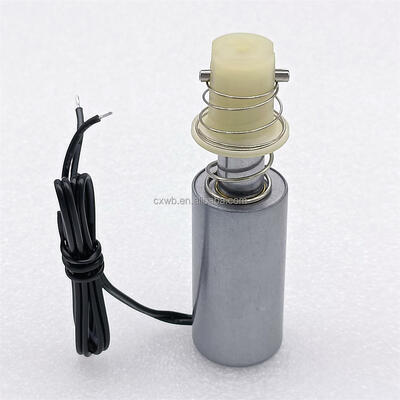

Tubular Solenoid
1. tubular have push and pull type optional, linear motion, Dc power supply, supply reset spring or no reset spring plunger,
can custom the voltage and stroke.
2.Typically used for longer stroke, can also be designed for high force heavy duty applications.
3. Tubular solenoid are excellent used for locking solenoids, whether for doors, security or industrial machiney.
4. Some tubular solenoid have single hole mounting holes, easy to install, accepted custom as you needed.
| Our Product | circular holding electromagnet, square holding electromagnet, open frame solenoid, tubular solenoid, keep solenoid, electromagnet lock, solneoid lock |
| MOQ | 2 pcs, small orders can be acceptable if we have stocks of this product |
| Packaging | carton, customize according your requirement |
| Delivery Time | shipped in 5-20 days after payment (decided by the order quantity and stock) |
| Supply Ability | 5000 pcs per week |
| Payment Terms | T/T, paypal, etc. |
| Shipping | sea freight, air freight, express (DHL, UPS, FEDEX, EMS and etc. ) |
Q: Are tiy trading company or manufacturer?
A: We are original factory.
Q: How to choose a solenoid/electromagnet?
A: Following parameters should be provided: voltage(DC/AC), power, current, resistance, stroke, force,dimension limit, force, residual force, duty cycle and etc.
Q: How long is your delivery time?
A: Generally is 3-10 days if the goods are in stock and sometimes need 15-20 days if goods are not in stock. It also depends on the order quantity.
Q: What is terms of payment?
A: If payment <= $1000, it would need 100% payment in advance and it can be 50% payment in advance if payment > $1000.
Q: Is there any extra charges if we want you to print our logo or company name on your products or packaging?
A: Threre's no extra fee. Please offer us the logo files and we'll make it well on your peoduct.
