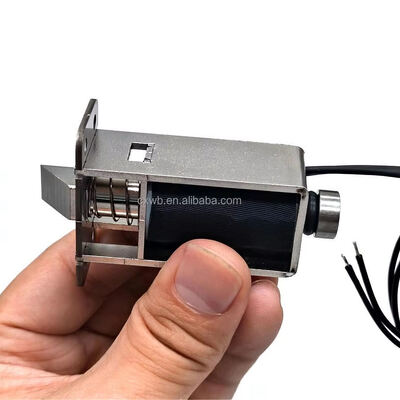

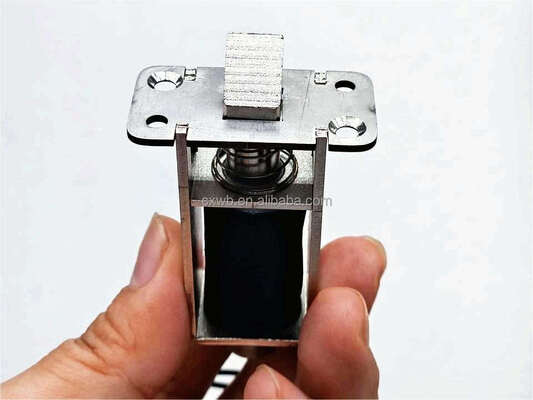

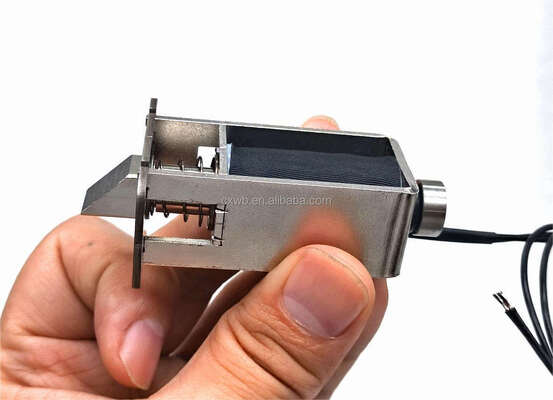

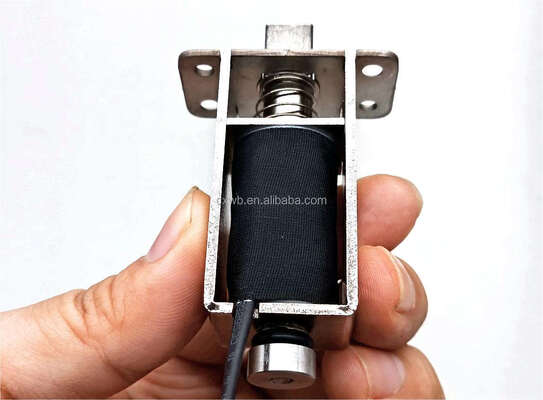

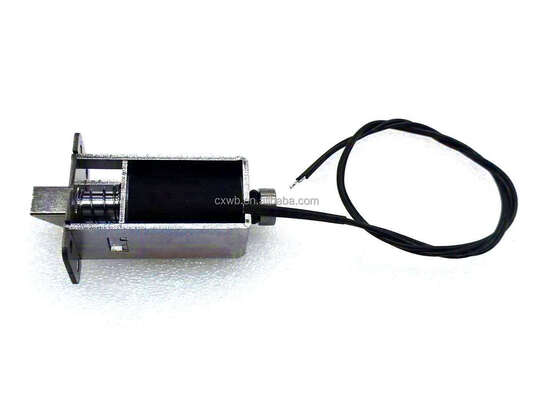

U1054s-2-001 Electromagnetic Lock / Solenoid / Intelligent Lock Cabinet Accessories / Push-Pull Solenoid

Large Image : U1054s-2-001 Electromagnetic Lock / Solenoid / Intelligent Lock Cabinet Accessories / Push-Pull Solenoid

Product Details:

Place of Origin:	China
Brand Name:	Dason
Certification:	ISO9001
Model Number:	U1054s-2-001

Contact Now

U1054s-2-001 Electromagnetic Lock / Solenoid / Intelligent Lock Cabinet Accessories / Push-Pull Solenoid

Description

Potence:	≥600gf	Stroke:	10mm
Power:	10.2W	Ppotence:	Normal
Operating Temperature:	-20°C To 80°C	Temperature Range:	-20°C To 80°C
Product Usage:	Tow	Biometr:	Test Life Is 50,000 Times
Keyword:	Linear Solenoid	Port Of Loading:	FOB Shenzhen
Type:	Electromagnetic	Port Size:	Can Be Custom
Oem:	Support	Insulaiton Level:	CLASS H (180°)
Insulation Resistanc:	50MΩ MIN, DC500V

Product Description

U1054s-2-001 Electromagnetic Lock / Solenoid / Intelligent Lock Cabinet Accessories / Push-Pull Solenoid 0

Brand: Dason

Product Name: electric plug lock (power on lock type)

Product model: dason-1054s-round head

Product voltage: DC6V / 12V / 24V current: 0.57a 0.3A 0.15A

Product specification: length 54mm, width 42mm, height 28mm

Product features: when the power of special door cabinet is cut off, the lock will open the door of the cabinet and lock the door when the power is on. The function of the electric lock in the market is the opposite, so the power consumption is saved. The structure of the lock is simple, the use cost is low, and the installation is convenient.

Service life: more than 500000 times under rated working conditions
Instructions for use and installation:

1. The red and black lines are the power lines of electromagnetic lock, with positive and negative poles, input voltage of DC6V / 12V / 24V and current of respectively 0.57A 0.3A 0.15A ;

2. When the switch is connected to the power supply, the extension length of the locking tongue is 9.3MM When the door is locked and the power is off, the locking tab retracts by the spring force inside 9.3MM , the door lock is unlocked.

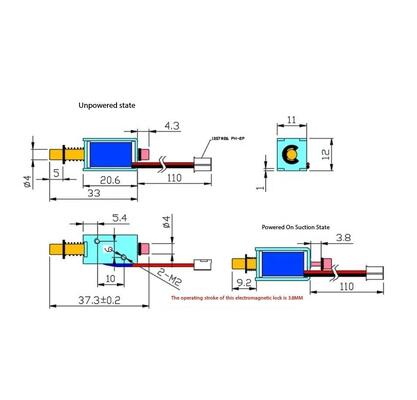

3. Installation dimension diagram:

item	value
Place of Origin	China
Brand Name	Cixin technology
Model Number	U1054s-06
Type	open frame push pull solenoid
Duty Cycle	power-on rate 10%
Power (Watts)	19.2w
Voltage - Rated	DC 6V, DC 12V, DC 24V
Mounting Type	Thread installation
Description	DC 12V 24v open frame solenoid 8mm stroke solenoid for locks
Product name	open frame solenoid
Voltage	6VDC/12VDC/24VDC
Stroke	8-12mm
Diameter	10mm
Rated voltage	DC6V 10%
Tolerance	±0.2
Service	24 Hours Online
Certificate	ISO9001:2015

1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(35.00%),South Asia(25.00%),Western Europe(20.00%),South America(15.00%),Northern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Electromagnetic devices and parts,electronic component,Hardware accessories,Plastic fitting
4. why should you buy from us not from other suppliers? Founded in 2014, Our company has rich R&D and manufacturing experience in past 7years,for providing high-tech products, such as rotating electromagnets.We have effectively shorten the customer's time and reduced the customer's cost.
5. what services can we provide?
Accepted Delivery Terms: FOB,DDP,Express Delivery; Accepted Payment Currency:USD,HKD,CNY; Accepted Payment Type: T/T,D/P D/A; Language Spoken:English,Chinese
