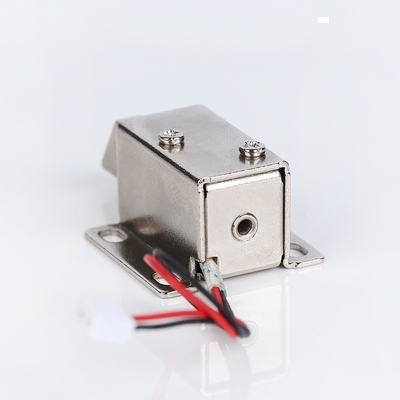

DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch

I'm Online Chat Now

DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch

DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch
DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch
DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch

Large Image :  DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch

Product Details:
Place of Origin: China
Brand Name: DASON
Certification: ISO9001
Model Number: U0627
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 1~3.USD
Packaging Details: Carton packing
Delivery Time: 30day
Payment Terms: T/T
Supply Ability: 300000

DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch

Description
Work Model: Pull Push Type Power: 0~24V
Size: 06*27mm Application: Auto Parts
Purpose: Light Switch Hi-Pot Tes: AC 600V 50/60Hz 2s
High Light:

Copper Core Pull Push Solenoid

,

DC6V Pull Push Solenoid

,

4mm Stroke Automotive Solenoid

Dc6 / 12V copper core micro electronic control lock express cabinet storage cabinet file cabinet intelligent cabinet mag



Product Description



Rated Voltage DC 12.0V DC 24.0V
Rated Current 0.4A 0.2A
Resistance 40Ω±10% 100Ω±10%
Power 4.8W 4W
Working Pressure 3mm
Leakage >3.0 l/min
Exhaust Speed < 3 seconds ( time to reduce air pressure from 300mmHg to 15mmHg in 500CC tank)
Pipe Φ7mm
Dimension 20*16*13mm
Application The service life can reach 1 million times by special process

Product dimension drawing

DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch 0

Force versus stroke curve



DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch 1

DC6V 12V Copper Core Pull Push Solenoid For Automotive Light Switch 2

Materials
High quality pure iron house, residual magnetism
High standard copper wire, heating stability, good insulation, efficient conductivity
IP65 waterproof class



Structure
Simple structure design, durable and reliable
Buckle and rubber sleeve parts reduce abrasion, extend service life
Installation and operation
Threaded mounting, easy to install and fix
U-shaped plunger for easy load connection


OEM/ODM is welcome
11 years of designing and producing experience
CE, ROHS, ISO9001, UL certification
Good quality, best service, competitive price
Warmly welcome your visit to our factory


Packaging & Delivery
Packaging Details
Product Size: 27*30*53 (mm)
Carton Box Size: 350*310*180 (mm)
N.W.: 0.3 (KG)
G.W.: 0.4 (KG)
Port:FOB shenzhen

Lead Time :

Quantity(Pieces) 1 - 50 51 - 500 501 - 1000 >1000
Est. Time(days) 5 10 20 To be negotiated



The main production and sales of electromagnets, solenoid valves, coils, solenoids, solenoids, hardware accessories, coil framework and other products.Respecting knowledge and valuing talents, the company now has a group of experienced scientific and technical personnel, and has established close cooperation with many domestic scientific research institutions. It has continuously introduced advanced production equipment and rapid production line at home and abroad. The production process has been mechanized and mold operation, and the production capacity has ranked the industry priority level. The company's sales network covers domestic, and exports to North America, Canada and other countries, relying on strong strength and technical advantages to undertake OEM.
