Product Details:
|
| Type: | Solenoid | Port Size: | Customizable |
|---|---|---|---|
| Structure: | Pull Push | Size: | 48.3 * 34 * 28mm |
| Insulation Resistan: | 50MΩ MIN, DC500V | Biometry: | 5000000 |
| Customized Support: | OEM, ODM | Force: | ≥1000gf |
| High Light: | DC24V Push Pull Linear Solenoid,Open Frame Push Pull Linear Solenoid,Bicycle Rental System Push Pull Solenoid |
||
| Quantity(Pieces) | 1 - 5000 | >5000 |
| Est. Time(days) | 30 | To be negotiated |
Product Description
* Electrician pure iron shell, less residual magnetism, integrated molding, stronger magnetic permeability
* Built-in core, more conductive and low power consumption
* Power-driven core load off by the spring return(Please note, relatively soft springs, only the iron core reset) Push nut
convenient headband fixed object, such electromagnet by impact work. Inertial force huge impact.
* Suitable For: Vending machines, transport equipment, office facility household appliance, mechanical, etc.
* Three months can be returned, half a year can be exchanged
| Product Parameter | |
| Application | Bicycle Rental System |
| Model | DSN-1348L-24A24 |

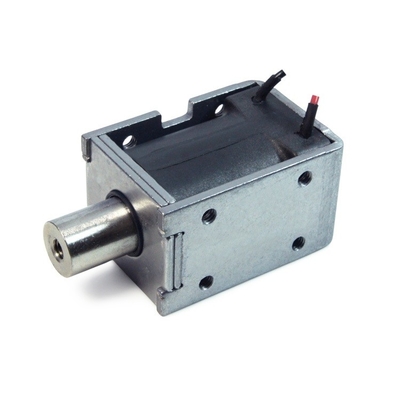

| Type | Frame Push Pull Solenoid |
| Size | 48.3 * 34 * 28mm |
| Valtage | DC24V |
| Power | 24W |
| Current | 1A |
| Resistance | 24Ω |
| Stroke | 9mm |
| Force | ≥1000gf |
| Life | ≥100,000 Times |
| Working cycle | 1S ON, 4S OFF |
| Response time | ≤50ms |
| OEM / ODM | Accept |
Packing & Delivery
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you provide free samples ?
A2: No, We don't provide free samples.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA
and QC system.
Q4: How’s the package?
A4: Normally are cartons, but also we can pack it according
to your requirements.
Q5: How’s the delivery time?
A5: It depends on the quantity you need, 25-35 days usually.
