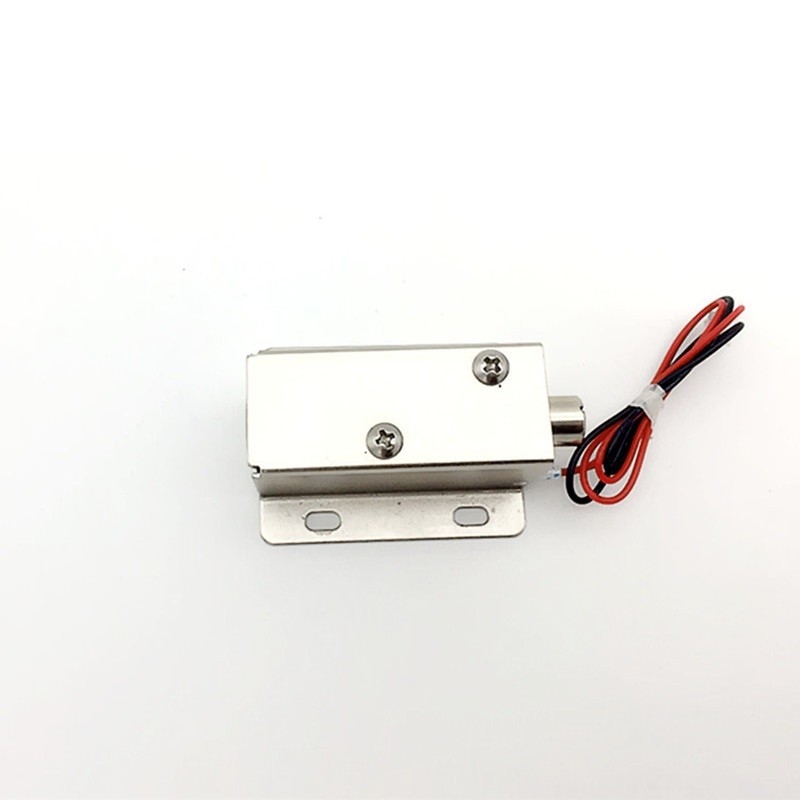

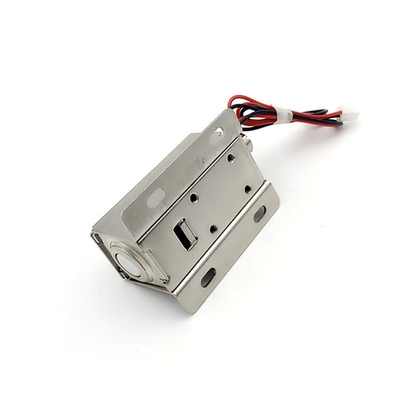

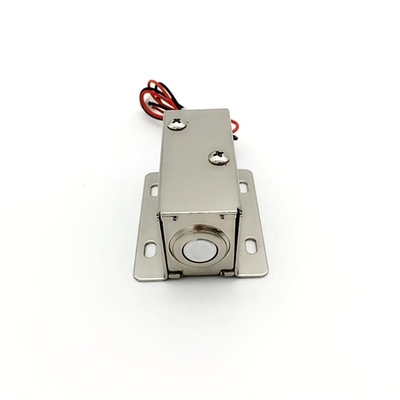

Low Carbon Steel 0.57A DC6V Door Solenoid

Large Image : Low Carbon Steel 0.57A DC6V Door Solenoid

Product Details:

Place of Origin:	CHINA
Brand Name:	DASON
Certification:	ISO9001
Model Number:	U1054s round head

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	1~3
Packaging Details:	Carton packing
Delivery Time:	30day
Payment Terms:	T/T
Supply Ability:	300000

Contact Now

Low Carbon Steel 0.57A DC6V Door Solenoid

Description

Material:	Low Carbon Steel	Holding Force:	280kg(600Lbs)
Voltage:	DC 12V	Product Name:	600LBS(280KG) Electromagnetic Door Lock
Size:	697313MM(or Other Size)	Lock Size:	231.6Lx41.6Wx24.5H(mm)
Application:	Wooden Door/glass Door/metal Door	Current:	150-300mA
Color:	Silver	Waterproof:	Outdoor
Armature Size:	180 L X 38 H X 11 D Mm	Weight:	2.1KG
Current Draw:	380mA	Working Voltage:	DC12V~DC24V
Warranty:	2 Years	Input Voltage:	12 Or 24VDC
Finish:	Zinc
High Light:	DC6V Door Solenoid , 0.57A Door Solenoid , 0.57A electromagnetic gate lock

Intelligent Electric Control Lock / Electric Plug Lock / Push-Pull Solenoid

Brand: Dason

Product Name: electric plug lock (power on locking type)

Product model: dsn1054s round head

Product voltage: DC6V / 12V / 24V, current: 0.57a 0.3A 0.15A

Product specification: 54mm in length, 42mm in width and 28mm in height

Product features: this electric lock opens the cabinet door when the power is off, and locks the door when it is powered on. It has the opposite function with the electronic control lock in the market, so it consumes less power. However, this lock has the advantages of simple structure, low cost and convenient installation.

Service life: more than 500000 times under rated working conditions

Instructions for use and installation:

1. The red and black wires are the power lines of electromagnetic lock, regardless of positive and negative poles. The input voltage is DC6V / 12V / 24V, and the current is 0.57a 0.3A 0.15A respectively;

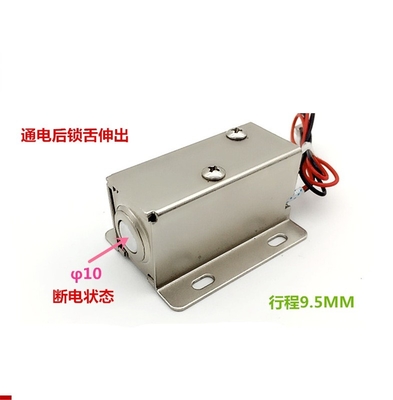

2. When the switch is connected to the power supply, the length of the lock tongue is 9.3mm. When the door is locked, the lock tongue retracts 9.3mm by the internal spring force, and the door lock is unlocked.

3. Installation dimension diagram:
