Miniature 4.4mm 2.5A Solenoid Door Lock

Miniature 4.4mm 2.5A Solenoid Door Lock
Miniature 4.4mm 2.5A Solenoid Door Lock Miniature 4.4mm 2.5A Solenoid Door Lock Miniature 4.4mm 2.5A Solenoid Door Lock Miniature 4.4mm 2.5A Solenoid Door Lock

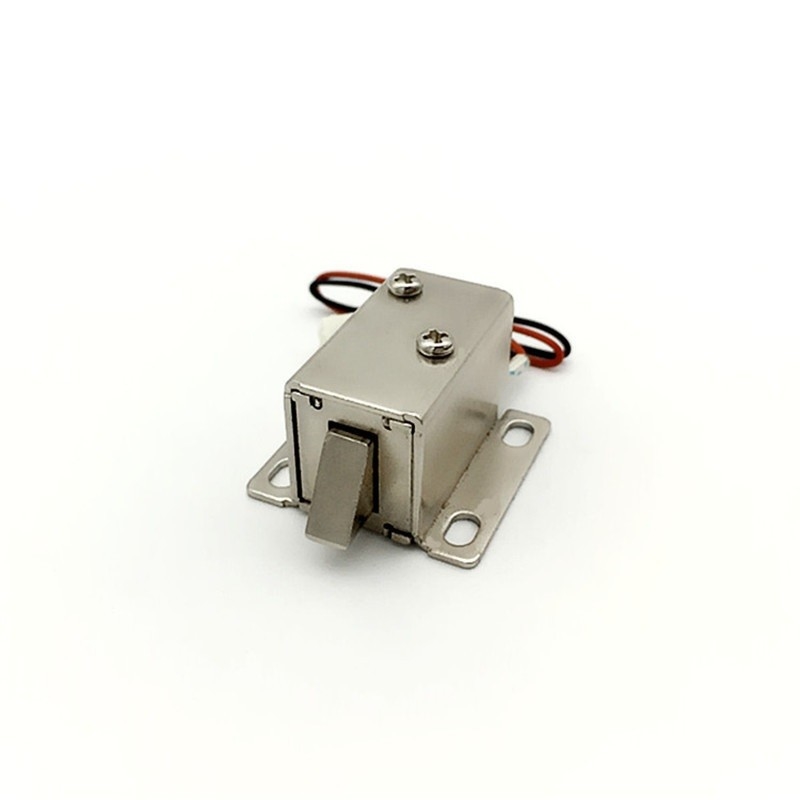

Large Image :  Miniature 4.4mm 2.5A Solenoid Door Lock

Product Details:
Place of Origin: CHINA
Brand Name: DASON
Certification: ISO9001
Model Number: U0627
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 1.75~2.5USD
Packaging Details: Carton packing
Delivery Time: 30day
Payment Terms: T/T
Supply Ability: 300000
Contact Now

Miniature 4.4mm 2.5A Solenoid Door Lock

Description
Biometry: More Than 50,000 Times Rated Voltage: DC12V
High Voltage: AC700V.3mA /s Resistance: At20℃ 5.6Ω±10%
Temperature Range: -5℃-45℃ Insulation Resistanc: 50MΩ MIN, DC500V
Highlight:

2.5A Solenoid Door Lock

,

4.4mm Solenoid Door Lock

,

2.5A 12 volt solenoid lock

Solenoid factory supply high quality hot selling DC miniature electronic lock DC6V / 12V electromagnetic lock



Product Description



Product Name
Pull Push Solenoid
Model
DSN-0627L-01
Voltage
DC 12v
sphere of application
10%
Size
52*33*27.4(mm)
Current
2.5A (REF)
Temperature Range)
-5℃-45℃
Relative Humidity
20%-85%
Insulaiton Level
Class B
Biometry
> 50,000 times

Instructions for use and installation:

1. The red and black wires are the power lines of electromagnetic lock, regardless of positive and negative poles. The input voltage is DC12V and the current is 0.43a;

2. When the switch is connected to the power supply, the length of the lock tongue is 4.4mm retracted, the door is opened, and the power is not connected, the lock tongue extends 4.4mm by the internal spring force, and the door lock is locked.

3. Installation dimension diagram:
Miniature 4.4mm 2.5A Solenoid Door Lock 0

Supply Ability:100000 Piece/Pieces per Week



Packaging & Delivery
Packaging Details carton
Port:Shenzhen
Picture Example:

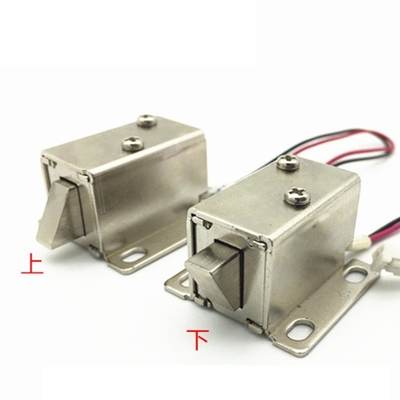

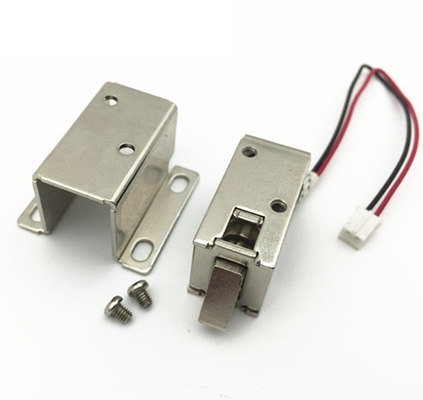

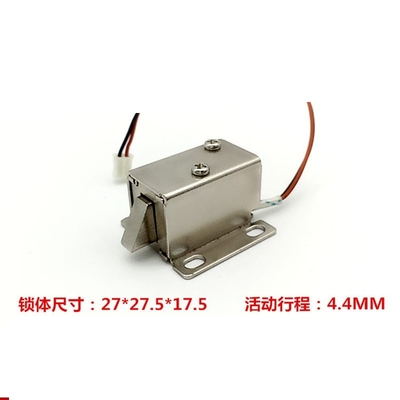

Miniature 4.4mm 2.5A Solenoid Door Lock 1
Lead Time :

Quantity(Pieces) 1 - 500 501 - 1000 1001 - 5000 >5000
Est. Time(days) 10 17 25 To be negotiated
