Product Features:
|
|
1. Self-elastic design, suitable for self-elasticity of cabinet doors weighing 0.5 ～ 4KG;
|
|
2. The lock hook can withstand a pulling force of 50KG without obvious permanent deformation, anti-vibration and anti-prying design;
|
|
3. Small size, light weight, sensitive response, simple control, water resistance, low current, energy saving and power saving;
|
|
4, low power consumption, low voltage, two AA batteries directly supply power, unlocking times up to 20,000 times;
|
|
5. Adopt special structural design, good stability, high strength vibration can be accepted, and the problem that the lock is easy to fall off is overcome;
|
Product features:
(1) independent type (i.e. the door is locked when power is off and the door is opened immediately after power on, and the cabinet door with weight less than 2kg can be opened;
(2) the locking hook can bear 50kg tension, without obvious permanent deformation, anti vibration and anti prying design;
(3) small size, light weight, sensitive response, simple control, labor and power saving;
Service life: more than 500000 times under rated working conditions
Instructions for use and installation:

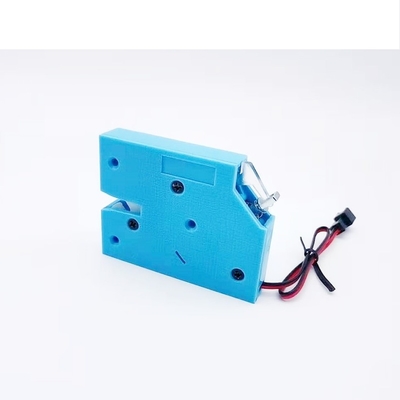

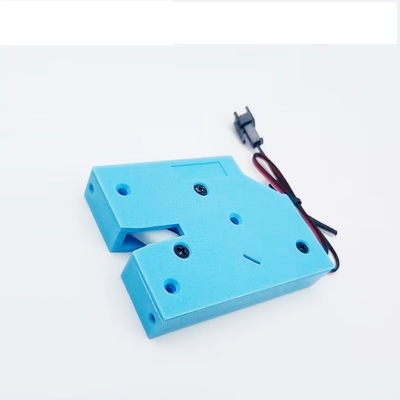

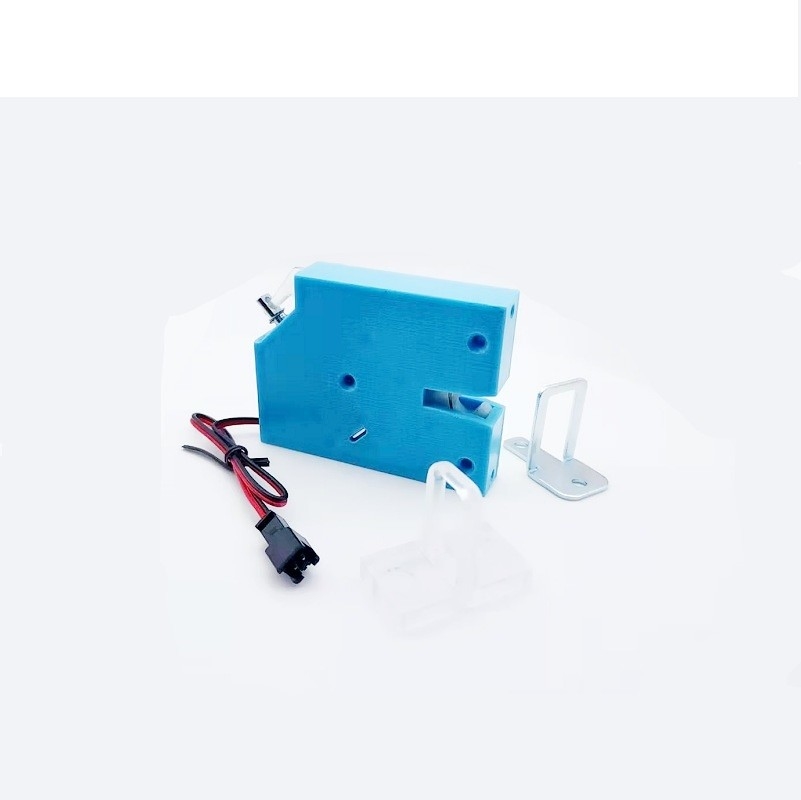

1. This lock is mainly composed of lock body and lock catch. Please pay attention to adjust the position of lock catch and hole to make it flexible;
2. The red and black wires are the power lines of electromagnetic lock, regardless of positive and negative poles. The input voltage is DC12V / 24V, and the current is 2A / 1.2A;
3. This lock can be customized and added with signal detection, which is mainly used to detect the status of the box door, which is normally open when opening and normally closed when closing;

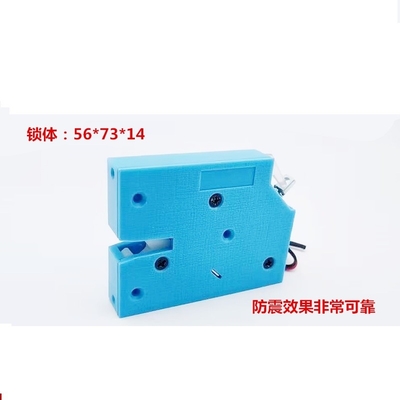

4. Schematic diagram of installation size:
