DC6V 2mm Electric Solenoid Lock For Vending Machine

I'm Online Chat Now

DC6V 2mm Electric Solenoid Lock For Vending Machine

DC6V 2mm Electric Solenoid Lock For Vending Machine
DC6V 2mm Electric Solenoid Lock For Vending Machine
DC6V 2mm Electric Solenoid Lock For Vending Machine DC6V 2mm Electric Solenoid Lock For Vending Machine DC6V 2mm Electric Solenoid Lock For Vending Machine DC6V 2mm Electric Solenoid Lock For Vending Machine DC6V 2mm Electric Solenoid Lock For Vending Machine

Large Image :  DC6V 2mm Electric Solenoid Lock For Vending Machine

Product Details:
Place of Origin: CHINA
Brand Name: DASON
Certification: ISO9001
Model Number: DSN-U0537
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 0.98~2USD
Packaging Details: Carton packing
Delivery Time: 30day
Payment Terms: T/T
Supply Ability: 300000

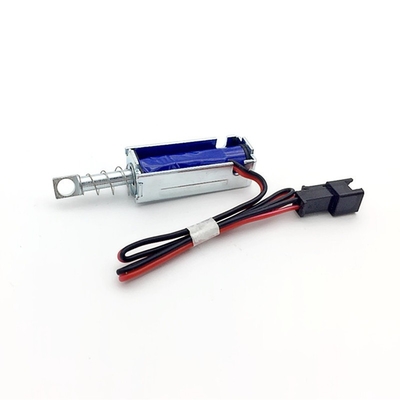

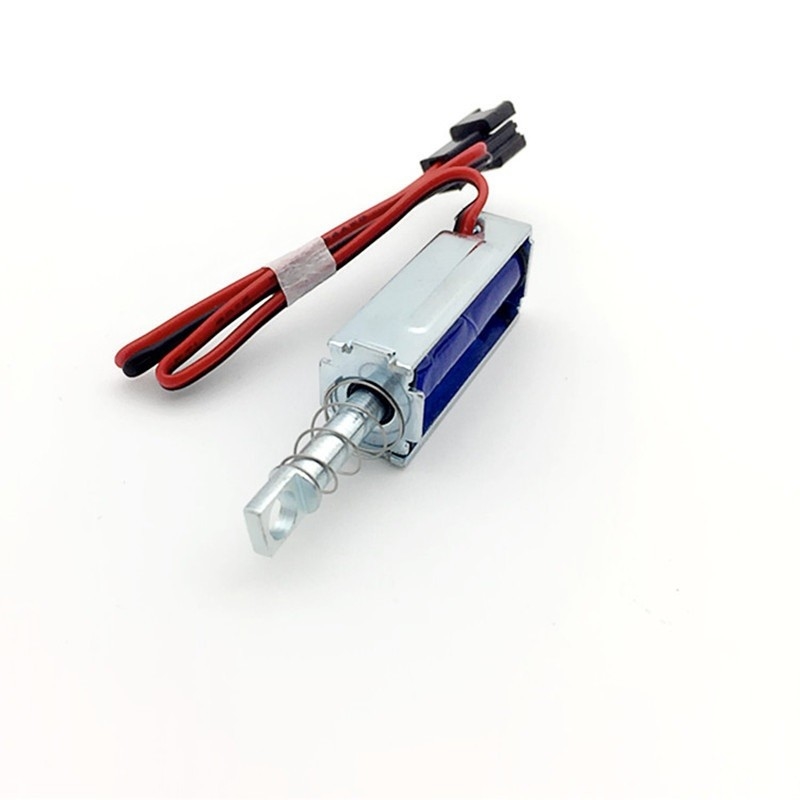

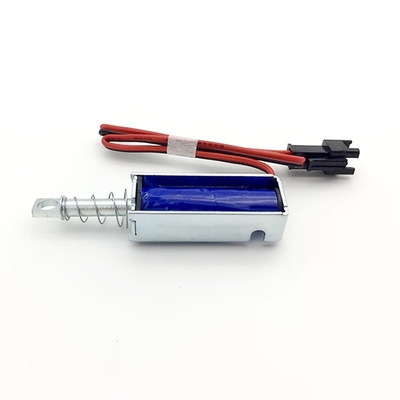

DC6V 2mm Electric Solenoid Lock For Vending Machine

Description
Type: SOLENOID VALVES Application: Smart Cabinet Lock
Temperature Range: -5℃-45℃ Current: 0.8A
Working Voltage: DC24V ±10% Resistance: At20℃ 30Ω±10%
High Light:

2mm Electric Solenoid Lock

,

DC6V Electric Solenoid Lock

,

DC6Velectromagnetic door lock

Pin Smart Cabinet Solenoid / Electromagnet Dsn0537-1 For Solenoid Of Vending Machine
push-pull solenoide de 24v Mini DC Solenoid Electromagnet For Smart Cabinet Lock
emperature range
-5℃-45℃
Relative humidity
20%-85%
Sphere of application
Intermittent power on (25%)

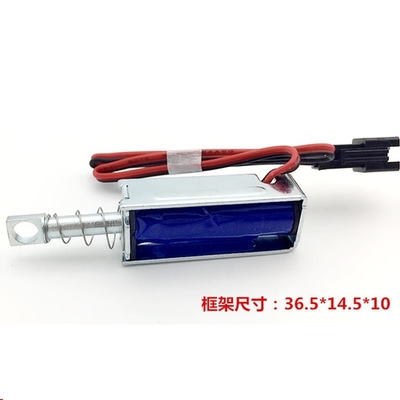

Dimensions
36.5*14*10mm
Working voltage
DC24V ±10%
Stroke & force
2mm stroke, power ≥100gf.
Insulation resistance
50MΩ MIN, DC500V
High voltage
1 second AC600V
Insulaiton level
CLASS B class(130°)
Biometry More than 20,0000 times
Application Supermarket Cash Register,Smart cabinet lock

Instructions for use and installation:

1. The red and black wires are the power lines of electromagnetic lock, regardless of positive and negative poles. The input voltage is dc6 / DC12V / 24V, and the current is 1.5a/2a/1a respectively. The action is completed within 0.2 seconds after power on;

2. The cable package does not exceed the frame, and can be installed into the lock in a flat way. There is a gap in the outlet position, and there is no resistance in the lock;

3. Installation dimension diagram:

Product drawing
DC6V 2mm Electric Solenoid Lock For Vending Machine 0
