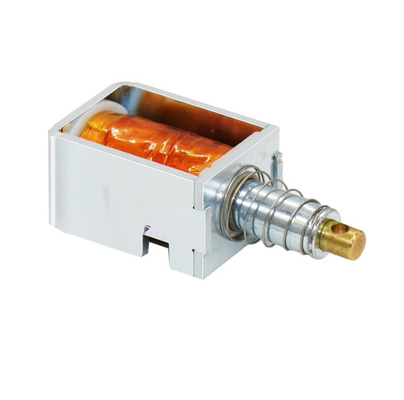

Push Pull 0.24A DC34V Solenoid Door Lock

I'm Online Chat Now

Push Pull 0.24A DC34V Solenoid Door Lock

Push Pull 0.24A  DC34V Solenoid Door Lock
Push Pull 0.24A  DC34V Solenoid Door Lock
Push Pull 0.24A  DC34V Solenoid Door Lock Push Pull 0.24A  DC34V Solenoid Door Lock Push Pull 0.24A  DC34V Solenoid Door Lock Push Pull 0.24A  DC34V Solenoid Door Lock Push Pull 0.24A  DC34V Solenoid Door Lock

Large Image :  Push Pull 0.24A DC34V Solenoid Door Lock

Product Details:
Place of Origin: CHINA
Brand Name: DASON
Certification: ISO9001
Model Number: DSN-1037L-08
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 1.65~3USD
Packaging Details: Carton packing
Delivery Time: 30day
Payment Terms: T/T
Supply Ability: 300000

Push Pull 0.24A DC34V Solenoid Door Lock

Description
Suitable For: Small Cabinet Temperature: Low Temperature
Media: Base Structure: Push Pull
Voltage: DC 12V High Voltage: 700v
High Light:

DC34V Solenoid Door Lock

,

0.24A Solenoid Door Lock

,

DC34V push pull solenoid valve

Open Frame Magnet Electromagnet Solenoid Valve 24V
Product Description
Working voltage
DC34V ±10%
Current
0.24A (REF)
Resistance
at20℃ 144Ω±10%
Stroke & Force
4mm≥ 420gf
Insulation resistance
100MΩ MIN, DC500V
High voltage
1 second DC700V
Insulaiton level
CLASS B(130°)
Temperature range
-5℃-45℃
Relative humidity
20%-85%
Size
37*20*26mm

Material

High quality pure iron house, residual magnetism
High standard copper wire, heating stability, good insulation, efficient conductivity



Structure
Simple structure design, durable and reliable
Buckle and rubber sleeve parts reduce abrasion, extend service life


Scope Of Use
- Easy to install for the electric door lock or other automatic door lock systems with the mounting board.
- Widely used for the cabinet lock,locker locks,file cabinet locks ,luggage locks,electric locks,door locks,solenoid locks,drawer,newspaper boxes lock ,sauna lock,locker,car lamp valve.

Push Pull 0.24A  DC34V Solenoid Door Lock 0



Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Port
Guangdong, shenzhen

Lead Time :
Quantity(Pieces) 1 - 500 501 - 5000 >5000
Est. Time(days) 10 25 To be negotiated
