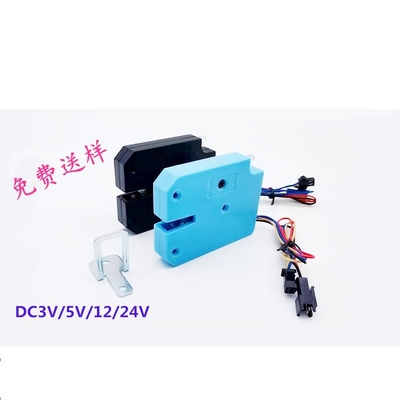

DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock

I'm Online Chat Now

DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock

DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock
DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock
DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock

Large Image :  DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock

Product Details:
Place of Origin: CHINA
Brand Name: DASON
Certification: ISO9001
Model Number: DSN-5873-001
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 2.75~4USD
Packaging Details: Carton packing
Delivery Time: 30day
Payment Terms: T/T
Supply Ability: 300000

DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock

Description
Color: Black Application: Logistics Cabinet
Unlock Time: 500ms Material: Titanium Wire
Specifications And Dimensions: 73*58*13(mm) Current Characteristics: DC
Working Voltage: Dc3v Black Case, DC5V Black Case, DC12V Black Case, DC24V Black Case (V) Main Sales Place: Rope, Southeast Asia
High Light:

DC 3V Cabinet Electromagnetic Lock

,

DC 5V Cabinet Electromagnetic Lock

,

DC24V Electromagnetic Door Lock

Titanium wire intelligent electric control lock hotel lattice cabinet express cabinet electromagnetic lock fresh food di





Brand: Dason electromagnetic

Product Name: titanium wire electric lock

Product model: sm5873-1

Product voltage: dc3v / 5V / 12V / 24V current: 0.8A

Product specification: 73mm long, 58mm wide and 13mm thick

Product features:

(1) self bouncing design, which is applicable to the self bouncing of cabinet doors weighing 0.5 ~ 4kg;

(2) the locking hook can withstand 50kg tension without obvious permanent deformation, and is designed for anti vibration and anti prying;

(3) small volume, light weight, sensitive response, simple control, water resistance, low current, labor and power saving;

(4) Low power consumption, low voltage, direct power supply from two No. 5 dry batteries, and up to 20000 times of unlocking;

(5); Special structural design is adopted, which has good stability, can accept high-strength vibration, and overcomes the problem that the latch is easy to fall off;

Service life: more than 300000 times under design load

If you need to add an electric lock for signal feedback detection, please contact the seller!!!!

Instructions for use and installation:

1. This lock is mainly composed of lock body and lock catch. Please adjust the position of lock catch and hole to be free and flexible;

2. The red and black wires are the power lines of the electromagnetic lock, regardless of the positive and negative poles. The input voltage is dc3v / 5V / 12V / 24V and the current is 0.8A;

3. This lock can be customized and added with signal detection, which is mainly used to detect the state of the box door. It is normally open when opening and normally closed when closing;

4. Schematic diagram of installation dimensions: (installation is not divided into left and right, positive and negative)



DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock 0

DC 3V 5V 12V 24V Titanium Wire Lattice Cabinet Electromagnetic Lock 1
