Mini DC5V Electromagnetic Lock for Vending Machine

I'm Online Chat Now

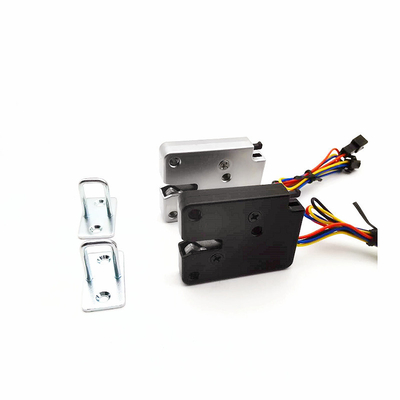

Mini DC5V Electromagnetic Lock for Vending Machine

Mini DC5V Electromagnetic Lock for Vending Machine
Mini DC5V Electromagnetic Lock for Vending Machine
Mini DC5V Electromagnetic Lock for Vending Machine Mini DC5V Electromagnetic Lock for Vending Machine Mini DC5V Electromagnetic Lock for Vending Machine Mini DC5V Electromagnetic Lock for Vending Machine Mini DC5V Electromagnetic Lock for Vending Machine

Large Image :  Mini DC5V Electromagnetic Lock for Vending Machine

Product Details:
Place of Origin: CHINA
Brand Name: DASON
Certification: ISO9001
Model Number: DSN-4050-1
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 2.75~4USD
Packaging Details: Carton packing
Delivery Time: 30day
Payment Terms: T/T
Supply Ability: 300000

Mini DC5V Electromagnetic Lock for Vending Machine

Description
Color: Black Application: Logistics Cabinet
Unlock Time: 500ms Material: Titanium Wire
Specifications And Dimensions: 40*50*10(mm) Current Characteristics: DC
Working Voltage: Dc3v Black Case, DC5V Black Case, DC12V Black Case, DC24V Black Case (V) Main Sales Place: Rope, Southeast Asia
High Light:

Vending Machine Mini Electromagnetic Lock

,

Mini DC5V Electromagnetic Lock

,

DC5V Electric Control Lock

Small vending machine DC5V electromagnetic lock Mini cabinet intelligent electric control lock letter box lock





Brand: Dasonelectromagnetic

Product Name: titanium wire electric lock

Product model: sm4050-1

Product voltage: dc3v / 5V / 12V / current: 0.8A

Product specification: 50mm long, 40mm wide and 10mm thick

Product features:

(1) self bouncing design, which is applicable to the self bouncing of cabinet doors weighing 0.5 ~ 4kg;

(2) the lock hook and lock body are of metal structure, which can withstand 100kg tensile force without obvious permanent deformation, anti vibration and anti prying design;

(3) small volume, light weight, sensitive response, simple control, water resistance, low current, labor and power saving;

(4) Low power consumption, low voltage, direct power supply from two No. 5 dry batteries, and up to 20000 times of unlocking;

(5); Special structural design is adopted, which has good stability, can accept high-strength vibration, and overcomes the problem that the latch is easy to fall off;

Service life: more than 100000 times under design load

If you need to add an electric lock for signal feedback detection, please contact the seller!!!!

Instructions for use and installation:

1. This lock is mainly composed of lock body and lock catch. Please adjust the position of lock catch and hole to be free and flexible;

2. The red and black wires are the power lines of the electromagnetic lock, regardless of the positive and negative poles. The input voltage is dc3v / 5V / 12V /, and the current is 0.8A;

3. This lock can be customized and added with signal detection, which is mainly used to detect the state of the box door. It is normally open when opening and normally closed when closing;

4. Schematic diagram of installation dimensions: (installation is not divided into left and right, positive and negative)

Mini DC5V Electromagnetic Lock for Vending Machine 0

Mini DC5V Electromagnetic Lock for Vending Machine 1

Mini DC5V Electromagnetic Lock for Vending Machine 2

Mini DC5V Electromagnetic Lock for Vending Machine 3

Mini DC5V Electromagnetic Lock for Vending Machine 4
