Product Details:
|
| Color: | Black | Application: | Logistics Cabinet |
|---|---|---|---|
| Unlock Time: | 500ms | Material: | Titanium Wire |
| Specifications And Dimensions: | 120*77*23（mm） | Current Characteristics: | DC |
| Working Voltage: | Dc3v Black Case, DC5V Black Case, DC12V Black Case, DC24V Black Case (V) | Main Sales Place: | Rope, Southeast Asia |
| High Light: | 1A Electromagnetic Solenoid Lock,DC12V Electromagnetic Solenoid Lock,DC12V Motorcycle Lock |
||
Solenoid factory motorcycle accessories intelligent electric control lock intelligent electromagnetic lock
Brand: DASON electromagnetic
Product Name: Motorcycle electromagnetic lock
Product model: DSN2377-1
Product voltage: DC12V current: 1A
Product specification: 120mm long, 77mm wide and 23mm thick
Product features:
(1) the cabinet door weighing less than 4kg can be opened;
(2) the locking hook can withstand 150kg tensile force without obvious permanent deformation, with anti vibration and anti prying design;
(3) small volume, light weight, sensitive response, simple control, labor and power saving;
Service life: more than 500000 times under rated working conditions
The parameters of spot finished products are as follows:
Product model Voltage electric current trip Initial suction remarks
SM2377-1 DC12V 1A ≥10MM 300gf Other voltage parameters can be customized
Instructions for use and installation:
1. Please pay attention to adjust the position of the lock catch and hole for the installation of this model, and it is better to be free and flexible;
2. The red and green lines are the power lines of the electromagnetic lock, the red line is connected to the positive, the green line is connected to the negative, and the input voltage is DC12V,;

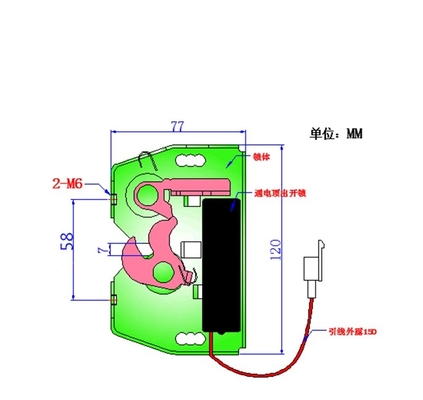

3. Schematic diagram of installation dimensions:
