Solenoid Door Lock for Cabinets Drawers and Lockers 360 Degree Reversible Bolt Energy Saving Easy Installation

Large Image : Solenoid Door Lock for Cabinets Drawers and Lockers 360 Degree Reversible Bolt Energy Saving Easy Installation

Product Details:

Place of Origin:	China
Brand Name:	Dason
Certification:	ISO9001
Model Number:	MA1206H

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	10USD
Delivery Time:	20days
Payment Terms:	T/T

Contact Now

Solenoid Door Lock for Cabinets Drawers and Lockers 360 Degree Reversible Bolt Energy Saving Easy Installation

Description

Product Description

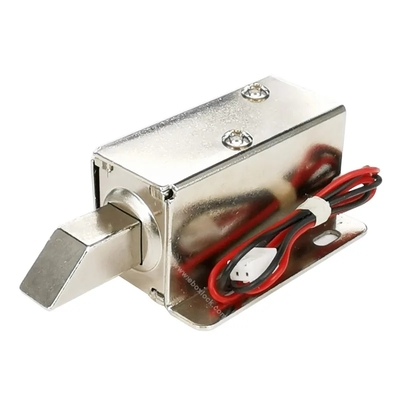

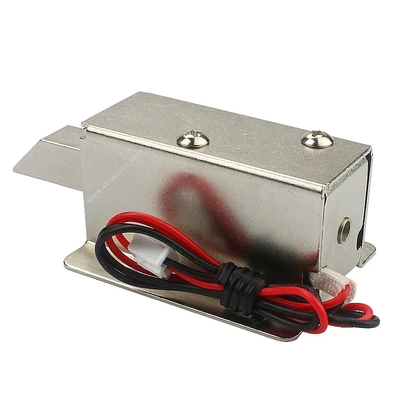

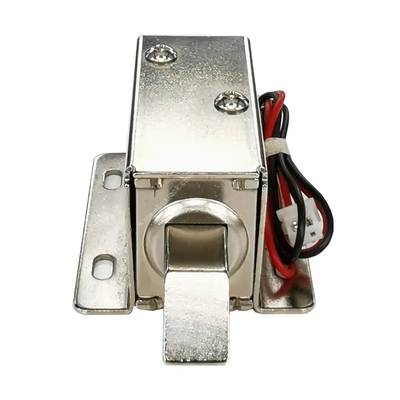

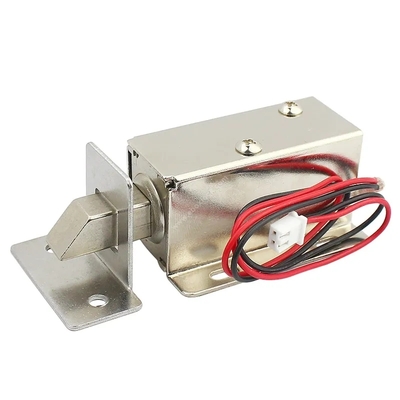

Electric Solenoid Lock (MA1206H) is a mini metal constructed lock specially designed for keyless entry of cabinets, drawers and lockers. The bolt is 360 degree reversible and surface mounting either vertically or horizontally offers easy and flexible installation. The Electric Solenoid Lock is compatible with any access control system or standalone cabinet locking system. The Electric Solenoid Lock (MA1206H) is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.

Features

360 degree reversible bolt
Superior heavy duty metal construction
Nickel-plated steel housing
Surface-mounted compact electric lock
Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,
Fitted to steel furniture, mail box and drawers etc.

Specification

Operation Voltage	12VDC ±10%
Power Consumption	12V DC 800mA
Operation Mode	Fail Locked
Length of tongue	23.5mm
Maximum power on time	Less than 1 second
Cycle Rating	600,000
Working Temperature	-25ºC ~ +80ºC
Dimension	78mm41mm28mm
Weight	150g
Protection Class	NA

Applications:
The solenoid cabinet lock is ideal for various applications as following:
Steel cabinet or metal furniture
Electronic lockers
Retail display cases and drawers
Filing cabinets
Utility cabinets and drawers
Museum display cases
Pharmaceutical cabinets and drawers
Electronic letter box and delivery Locker

Solenoid Door Lock for Cabinets Drawers and Lockers 360 Degree Reversible Bolt Energy Saving Easy Installation 2

Solenoid Door Lock for Cabinets Drawers and Lockers 360 Degree Reversible Bolt Energy Saving Easy Installation 3
