Product Details:
|
| Insulation Resistan: | 50MΩ MIN, DC500V | Stroke: | 3mm |
|---|---|---|---|
| Resistance: | At20℃ 1.2Ω±10% | Type: | Door Lock |
| Locking Mechanism: | Spring Bolt | Potence: | Normal |
| Insulation: | 50MΩ MIN, DC500V | Function: | For Various Door Locks |
| Structure: | Push Pull | Packing: | Carton |
| Specification And Size: | 08*52（mm） | Current Characteristics: | DC |
| Finish: | Chrome/PVD | Service: | OEM ODM |
| Unlock Time: | 1 Second, Power On < 10 Seconds |
| PRODUCT FEATURES |

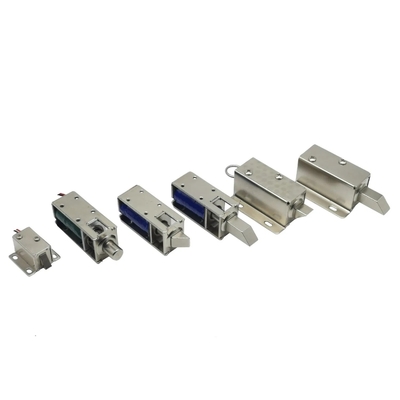

054-4B DC 12/24 volt Normally closed Mini Push Pull Solenoid lock for cabinet
1. Power supply: 12V or 24VDC, or customized
2. Stroke: 10 mm
3. Duty cycle: 10% - 100%, customized
4. Function: Connecting to power, lock tongue will pull in, when power is off, tongue will return back by spring
5. Application: gym cabinet, vending Machine, storage cabinet, sharing bicycle etc.
| Products Data Sheet | |||
| Product name: | Push Pull Solenoid | Insulation Class: | B |
| Model: | 1054-4B | Hi-Pot test: | AC750V/2S |
| Frame Size: | L54xW20xH26 | Service Life: | >500,000 Times |
| Stroke: | 10 mm | Lead time: | 5 days if have stock |
| Action Form: | Pull | Sample Order: | Acceptable |
| Voltage: | DC 12v/24v or customzied | MOQ: | 5 PCS |
| Duty Cycle: | 10%~100% | Warranty: | 2 Year |
| Install Thread size: | M3 | Origin: | Ningbo, Zhejiang |
| N.W.: | 120 g | Surface: | Electroplating |
| Certificate: | CE/ROHS | Material: | steel & enameled wire |
