Product Details:
|
| Service: | OEM ODM | Waterproof: | Outdoor |
|---|---|---|---|
| Surface Temp: | ≤+20℃,Low Temperature | Stroke: | 2mm |
| Warranty: | 1 Year | Biometry: | More Than 50,000 Times |
| Port: | Shenzhen | Application: | Logistics Cabinet |
| Unlock Time: | 1 Second, Power On < 10 Seconds | Installation Type: | Surface Mount |
| Samples: | Availble | Working Mode: | Power On To Open |
| Power: | 36W | High Voltage: | 700V |
| Structure: | Push Pull |

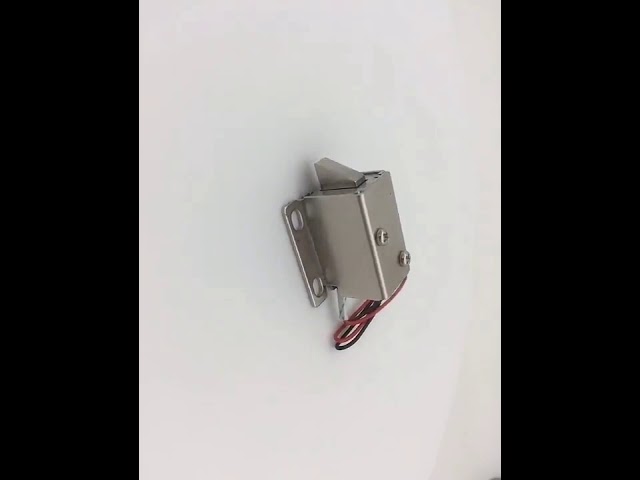

U1054-2 Dc 12v 24v Normally open push pull electric Solenoid Cabinet Lock.
1. Power supply: 12V or 24VDC, or customized
2. Stroke: 8.5 mm
3. Duty cycle: 10% - 100%, customized
4. Function: Connecting to power, lock tongue will pull in, when power is off, tongue will return back by spring
5. Application: gym cabinet, vending Machine, storage cabinet, sharing bicycle etc.
| Products Data Sheet | |||
| Product name: | Push Pull Solenoid | Insulation Class: | B |
| Model: | U1054-2 | Hi-Pot test: | AC750V/2S |
| Frame Size: | L54xW42xH28 | Service Life: | >500,000 Times |
| Stroke: | 8.5 mm | Lead time: | 5 days if have stock |
| Action Form: | Push | Sample Order: | Acceptable |
| Voltage: | DC 12v/24v or customzied | MOQ: | 5 PCS |
| Duty Cycle: | 10%~100% | Warranty: | 2 Year |
| Install Thread size: | M3 | Origin: | dongguan |
| N.W.: | 180 g | Surface: | Electroplating |
| Certificate: | CE/ROHS | Material: | steel & enameled wire |
FAQ: Push pull solenoid
Q: Are you trading company or manufacturer? And where is your factory located?
A: We are factory. Our factory is located in Ningbo City, 2 hours from Shanghai Airport by car.
Q: Do you have CE approved?
A: Yes, we have CE and ROHS certificate
Q: How to choose a suitable electromagnet quickly?
A: Please provided us following parameters:
Act form: pull or push type?
Frame Dimension?
Stroke,
Duty cycle,
Cable length and connector,
-------------------------------
For example: You can say I want purchase open frame solenoid as below:
Open frame solenoid
Action Form: Pull type
Frame Size: L37xW26xH20
Stroke: 10 mm
Beginning Force: 100g
Voltage: DC 12V,2A
Duty Cycle: 10%, Energized time: 6S, de-energized time: 60s
Lead Wire: side out 10 cm, with XH2.54 male connector.
Install Thread size: M3
---------------------------------------
Q: How long is your delivery time?
A: Samples ready for delivery in 3 days if the goods are in stock, or in 7-10 days for for customized product. It is according to quantity.
Normally, you will get our samples in 7-10 days after payment.
Q: Can you customized electromagnet?
A: Yes, you are welcome.
Q: Can I print my Brand/Logo on the product?
A: Yes, free of charge.
